IEC60695-2-10 Glow Wire Test Apparatus Stainless Steel With 1mm K Type Thermocouple
IEC60695-2-10 Glow Wire Tester with 1mm K type Thermocouple and 4mm Nickle Glow Wire
1.Description:
The glow wire tester is applied to test flammability, GWIT and GWFI of electrical and electronic products, household appliance and its components and parts, solid electrical insulating materials and other solid combustible materials. It’s designed according to IEC60695-2-10:2013 <Fire hazard testing - Part 2-13: Glowing / hot-wire based test methods - Glow-wire ignition temperature (GWIT) test method for materials>, UL746 and GB/T5169.10. The specific material and sharp heating wire is heated to specific temperature (550 ℃~960 ℃) for 1 min by max current, then vertical burns the EUT with certain pressure (0.95N) for 30s, then check if the test specimen and bedding material are burning, and count the burning time to judge the dangerousness of the specimen.
2. Features:
2.1 The device adopts stainless steel structure
2.2 With easy operation, stable performance and high accuracy
2.3 Temperature control part adopts imported parts
2.4 Each can be provided with a third-lab calibration certificate authorized by ISO17025
2.5 CE certificate is available
2.6 Meet the requirements of IEC60695-2-10:2013,UL746A,GB/T5169.10-2017, GB4706.1-2005
3. Parameter
| Glow wire temperature | 500~1000℃±2℃ |
| Glow time | 0-999.9s±0.1s (auto record) |
| Burning time | 0-999.9s±0.1s (auto record) |
| Flame Chilling time | 0-999.9s±0.1s (auto record) |
| Thermocouple diameter | Φ1.0mm, K type |
| Glow wire | Φ4mm nichrome wire |
| Pressure on test specimen | 0.95N±0.1N |
| Depth | 7mm±0.5mm |
| Test speed | 14mm/s |
| Test background | Black |
| Working chamber dimension | 0.5CBM |
| Dimension | 1000*650*1300mm (W*D*H) |
| Power supply | AC 220V, 50Hz, ≦800W |

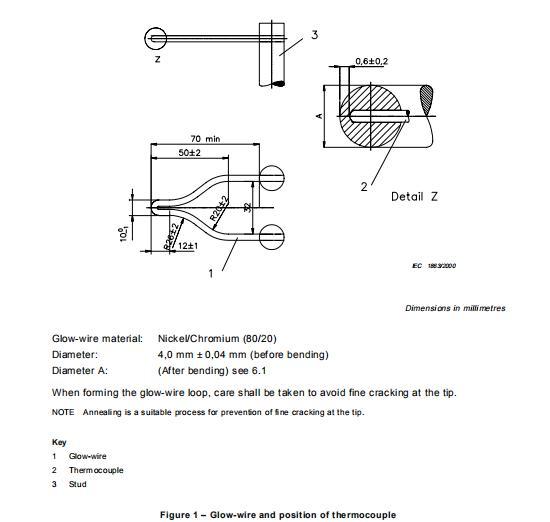

4. Figures:
