IPX3 IPX4 Swing Pipe Ingress Protection Test Equipment 220V/50Hz With Radius R1000
IP Test Equipment IPX3 and IPX4 Swing Pipe with Radius R1000 for Householding Appliance According to IEC60529
Introduction:
Oscillating tube is designed according to IEC60529-2001 regarding the second characteristic numerals 3 and 4. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.
Features:
● For IPX3 and IPX4 testing

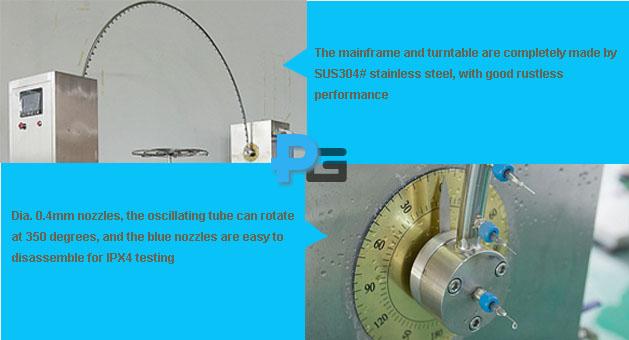

● The shell of the equipment and turntable are made by SUS304# stainless steel, to ensure rustless.
● Adopts double pillars structure, easy to install and stable rotation.
● Equip with adjustable trundles, makes the equipment easy to move.
● The tank is under the equipment, auto to control the water level with the help of Water floating ball valve , and alarm at high or low level to protect from the damage caused by low water level.
● Oscillating tube drive: Adopts Panasonic serve motor, with features of low noise and high accuracy.
● Turntable drive: adopts Chinese branded step motor, can adjust the speed and angle by touch screen, and auto control the directions (fit for the samples to do live test).
● Time setting for power: power off: 0-999min-power on: 0-999min-power off: 0-999min

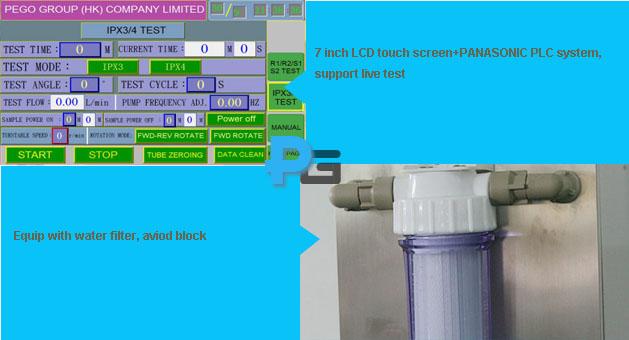

● Control components: 7 inch touch screen+ Panasonic PLC.
Parameter:
| Function Parameter | |
| Model | IPX34C-R1000 |
| External size | 2800mm*2000mm*2200mm (L*W*H) |
| Diameter of nozzle | Φ0.4mm |
| Inter-hole spacing | 50mm |
| Inside diameter of oscillating tube | 15mm |
| Diameter of turntable | 800mm |
| Protection device | Leakage protection, short circuit protection, hydropenia protection |
| Size of EUT | Less than 1600mm*1600mm*800mm |
| Construction Paramter | |
| Water flow | 0~4L/min |
| Angle of oscillating tube | 1200 (IPX3), 3500 (IPX4) or user-defined |
| Rotation speed of tube | 4s for 2*1200, 12s for 2*3600 or user defined |
| Turntable lifting height | 1150~1750mm |
| Turntable load bearing | About 50Kg |
| Speed of turntable | 1~5r/min |
| Electrical parameter | |
| Working power | 220V/50Hz |
| Power comsuption | 1.0KW |
Detail Pictures:
