IPX8 100L / 0.3MPa High Pressure Water Tank IEC60529 For 30m Immersion Test
IEC60529 IPX8 100L/0.3MPa High Pressure Water Tank for 30m Immersion Test for Diving Equipment
Introduction:
IPX8 continuous immersion tank is designed according to IEC60529-2001 regarding the second characteristic numerals 8. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. IP8X test is subject to the agreement between user and manufacturer, the test simulates the condition under 0 to 50m below the water.
Features:
1). For IPX8 Testing
2). Made by #304 stainless steel, adopts integrated welding molding technology.
3). Special silicon sealing ring, with features of good elasticity and no easy to damage.
4). Equip with safety valve, will auto depressurize if exceed the rated pressure to protect the user from any hurt caused by improper operation.
5). Adopts branded electronic components, like LG, PANASONIC and OMRON.
6). Test time: 0~999 min (preset), auto depressurize when time up.
7). Pressure sensor with accuracy of 0.001Mpa (display) and ±0.002Mpa (control)
8) Four wheels with brake, easy to move.
9) Holes can be designed according to user’s demands for live test.
Specification
| Function parameter | |
| Model | IPX8-30M-100L |
| Water depth test range | 0~30m |
| Pressure adjust range | 0~0.3MPa |
| Pressure control method | Pressure senor auto adjust |
| Pressure accuracy | 0.001MPa |
| Safety valve discharge pressure | 0.35Mpa |
| Time setting | 0~999min |
| Protection device | Leakage protection, circuit short protection, safety valve overpressure protection |
| Structure Parameter | |
| Outer size | 600*780*1300mm (L*W*H) |
| Inner size | Φ500*500mm |
| Material of body | SUS304# |
| Flange thickness | 20mm |
| Wight | About 60Kg |
| Electrical parameter | |
| Working power | 220V/50Hz |
| Power comsuption | 100W |

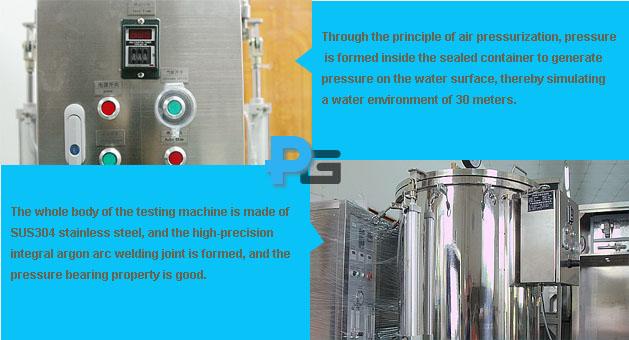

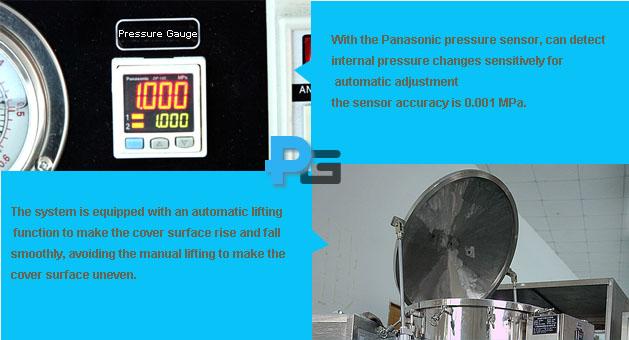

Picture:
Application:
Why choose PEGO?
1. PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2. Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3.Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6. Prompt Response to Customers: we promise to reply our customers within 24 hours
