Nylon Handle UL507 PA135A Accessibility Test Probe Stainless Steel Finger For Uninsulated Live Part
Price:
USD450-600/set
MOQ:
1set
Delivery Time:
15 working days
Brand:
PEGO GROUP
Product Description
UL507 PA135A Accessibility Test Probe for Uninsulated Live Part Nylon Handle + Stainless Steel Finger
1. Description:
UL accessiliby test probe for uninsulated live part is designed according to UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A). The handle is made by nylon and tip is made by stainless steel.
2.Specification:
| Rigid finger length | 101.6mm (4 inch) |
| Rigid finger diameter | Φ12.7mm (1/2 inch) |
| Head length | 14.3mm (9/16 inch) |
| Head radius | R4.8mm (3/16 inch) |
| Tail diameter | 191.mm (3/4 inch) |

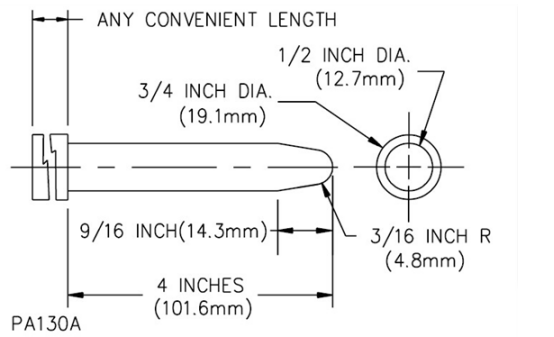

3. Figure
4. List of UL probes
| Product name | Standard |
| Articulate Probe with Web Stop | f UL507 figure 6.5 (PA100A), UL1017 figure 2, UL1062 figure 1.2, UL1310 figure 14.2, UL982 figure 7.1, UL474 figure 5.1, UL6500 figure 14, UL60065 figure 14, UL1082 figure 7.2 and UL1278 figure 8.3 |
| UL Accessibility Test Probe for Uninsulated Live Part | UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A) |
| Hazardous Moving Parts Probe for Impllers | UL507 figure 8.1 (PA160B), UL1278 figure 9.1 (PA160) |
| Test Probe for Film Coated Wire | UL1278 figure 8.2 (PA140A), UL398 figure 8.2 (PA170B) and UL507 (PA170D) |
