GB21456 IEC60335 Induction Cooker Vessels Q235 For Household
Standard Induction Element Test Pots Test Vessels and Test Pans for Household Electric Cooking Appliance
| Induction Element Test Pans | Standard | Size | Material | Mark |
| IEC60335-2-9-2002 figure 104 IEC60335-2-6 Figure 102 GB4706.14-2008 figure 104 GB4706.22-2008 figure 102 GB4706.29-2008 figure 101 |
Φ110, Φ145, Φ180, Φ220, Φ300 | Low carbon steel with carbon content of 0.08% max | 1. For testing induction hotplates 2. The surface is sprayed with high temperature non-stick coating |
|
| IEC60335-2-9:2008 figure 103 IEC60335-2-6 Figure 101 EN 30-1-1:2008 figure C2 GB4706.22-2008 figure 101 GB16410-2007 figure 7 |
Φ110, Φ145, Φ180, Φ220, Φ300 | Unpolished commercial quality aluminum | 1. For testing hotplates 2. The vessels have flat bottom and covered with lids |
|
| EN60350-2-2013 figure ZB.1 QB T 4404-2012 |
Φ120, Φ150, Φ180, Φ210, Φ240, Φ270, Φ300, Φ330 | 1.4301 stainless steel (body) 1.4016 stainless steel (bottom) Aluminum (lid) |
1. For testing cookware 2.The vessels covered with aluminum lids |
|
| GB21456-2014 | Φ140, Φ200, Φ220, Φ280 | Q235 with carbon content of 0.08% max | 1. for induction hotplates to evaluate the energy efficiency and energy efficiency grades 2. The bottom of the pan can not convex outward, and the pan covered with lids 3.The maximum concavity at the bottom is 0.6% times the effective diameter 4. The surface of the pan and the lid should be smooth and polished to prevent rust |
|

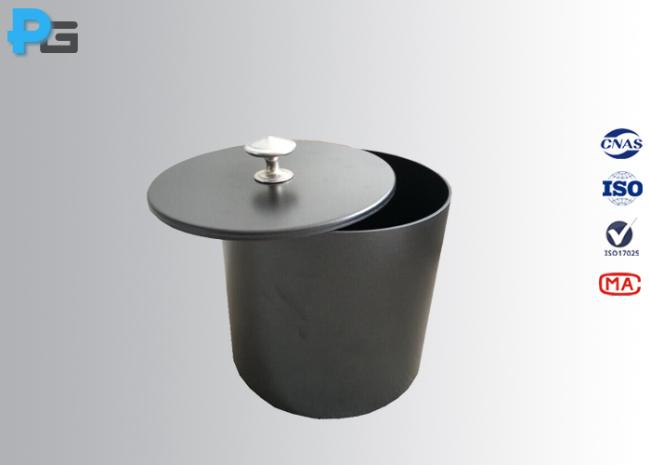

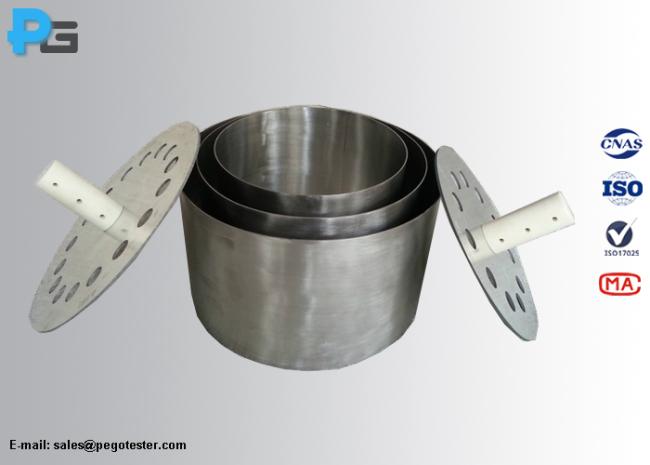

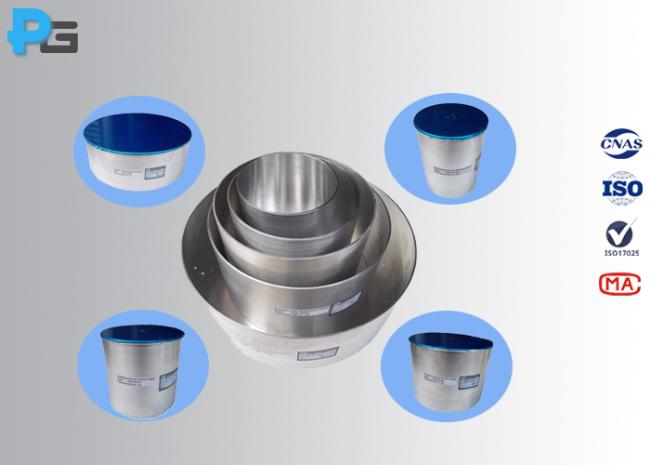

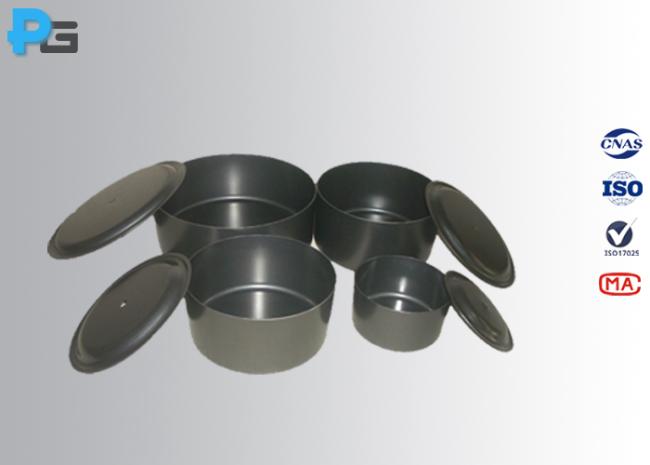

Pictures:
