IEC60529 IP Rating Testing IPX3 / IPX4 Water Spray Nozzle with Brass Sprinkler Head and Aluminum Baffle

1. Introduction of Spray Nozzle:

Water spray nozzle is strictly designed according to the requirements of IPX3 and IPX4 code of GB4208 and IEC60529 standard. It’s used to test the waterproof performance of the appliance and electronics.

The main difference of the IPX3 and IPX4 handheld spray nozzle is that IPX4 needs to take off the balancing shield of the spray nozzle in order to make the enclosure splashed water in every possible direction.

2. Parameters of the spray nozzle

3. Sample range of spray nozzle:

Larger size sample

4. Material of spray nozzle:

Brass sprinkler head, aluminum baffle

5. Application of Spray Nozzle:

Outdoor lighting (street light, landscape lights, LED projection lights and other lighting industry), home appliances (water heater, washing machine, hair dryer and other home appliances industry), outdoor audio field ( portable audio, performance stage audio equipment, and other outdoor audio industry)

6. Feature of the spray nozzle:

1) CNC machining, precision spray hole

2) The handle is made of SUS304 stainless steel, beautiful and high rust resistance

3) Sprinkler head is made of brass, spray with anti-rust coating. The baffle is made of aluminum alloy and processed.

4) Each hole’s dimension of the sprinkler is fully designed refer to the standard.

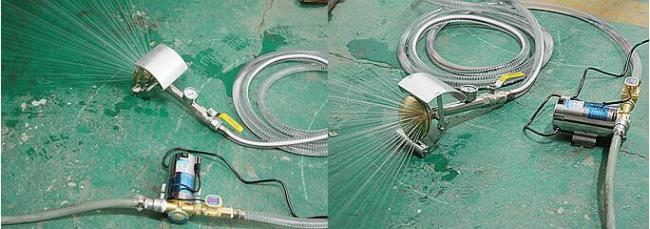

7. Testing
