Abration Resistance Test Pin Made by Hardened Steel Conforms to IEC60950

1. Introduction

The scratch resistance test uses a hardened steel pin for scratching. The end of the steel pin should be tapered with a apex angle of 40°. The tip should be rounded with radius of 0.25 mm ± 0.02 mm.

The hardened steel pin should work with abration reistance tester. When performing the scratch test, scratches were performed at a speed of 20 mm/s ± 5 mm/s in a plane perpendicular to the edge of the conductor. The steel pin should be properly loaded so that the hardened steel pin can apply a force of 10N ± 0.5N along its axial direction. The pin can equip with 20N weights to reach 30N load.

2. Standard Conforms to : IEC60950 clause 2.10.8.4 and IEC60335-1 clause 21.2.

3. Application: Scratch ressitance test for for accessible parts of solid insulation of household appliance and printed circuit boards

4. Parameter

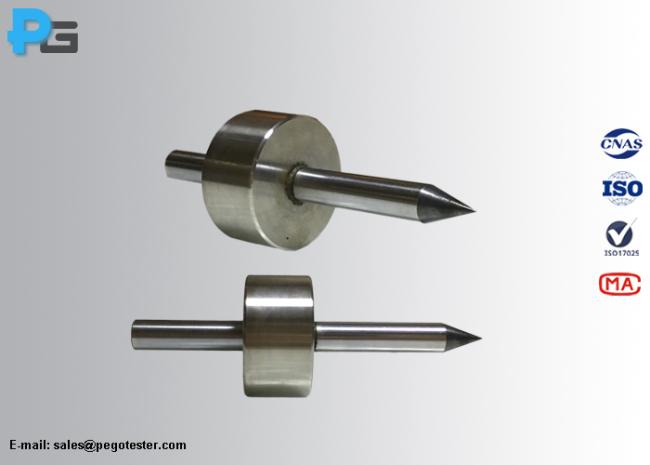

5. Picture
