SUS304 IEC60884-1 80N Flexible Cable Test Apparatus 220V/50Hz
Price:
USD2000~USD2500
MOQ:
1 set
Delivery Time:
7 working days
Brand:
PEGO GROUP
Product Description
IEC60884-1 Flexible Cable Retention Force Test Apparatus 220V/50Hz
1. Introduction
This device is manufactured according to the IEC60884-1 clause 23.2 figure 20. It is used to check the effectiveness of the retention of the cable by the cord anchorage. It’s applied to the removable plug, removable mobile socket, non-rewirable plug, rewirable mobile socket.
The according tensile force of the flexible cable:
| The rated current of the flexible cable(A) | The rated voltage of the flexible cable(V) | The tensile force (N) |
| 2.5 | — | 50 |
| 2.5～16 | ≤250 | 60 |
| 2.5～16 | >250 | 80 |
| >16 | — | 100 |
2. Parameters
| Power Supply | AC 220V±10%, 50Hz/60Hz |
| Number of testing | 1~9999( x1x10x100) |
| Weight |
10N*1, 60N*1, 20N*2 (Configured to test 40N, 50N, 60N, 80N, 100N weights) Material: SUS304 stainless steel |
| Rate of testing | 5-60 times/min |
| Standard | IEC60884 figure 20, VDE0620 |

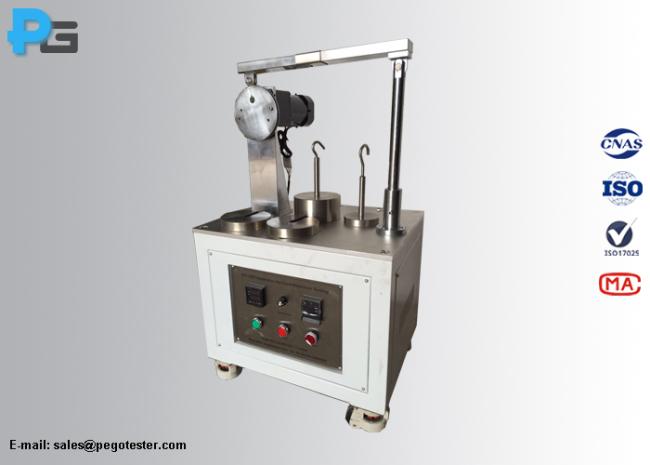

3. Picture
