Backed Hardwood 3mm Steel Tumbling Barrel Machine 5R/ Min IEC60068-2-31

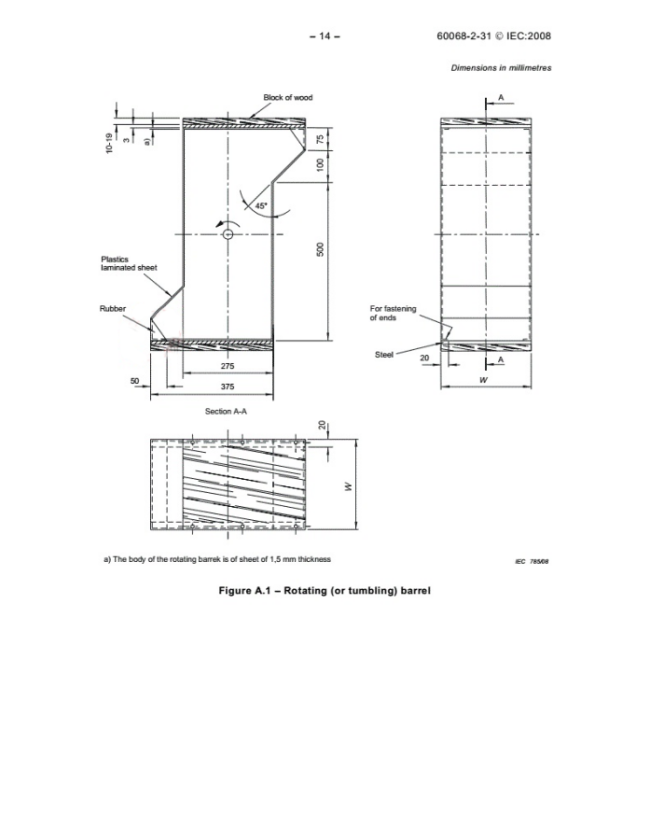

IEC60068-2-31 Figure A.1 Rotating Barrel / Tumbing Barrel for Repeat Free Fall Test
1. Introduction
1. Introduction
The tumbling barrel is designed according to IEC60068-2-31 for repeat free fall test. The barrel has 2 lids made of transparent acrylic, user can not only observe the falling state of the sample, but also can placing and taking out the sample easily. The sample shall be placed in the tumbling barrel and subjected to prescribed number of falls. The operation panel is equipped with an emergency stop button, which is convenient for stopping the test at any time.
2. Specification
| Control units | Button control+meter |
| Test station | 1 |
| Rotating speed | 5R/min |
| Rate of fall | 10 falls/min |
| Falling height | 500cm |
| Number of falls |
0-999999 (settable) Complete the prescribed number of falls, the equipment will auto stop |
| Configuration |
Test surface: steel with thickness 3mm Backed hardwood: plywood with thickness 15-20mm Bevel: backed by 2 wedge-shaped chip-resistant rubber with a hardness of 80±20IRHD as per ISO48 |
| Sizes |
Width: 220mm Other sizes as below:
|

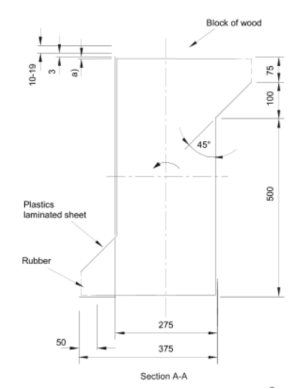

3. Drawings
