China Stainless Steel Test Finger Probe Stopper Pin IEC60335-2-80 220V For Fan for sale

Stainless Steel Test Finger Probe Stopper Pin IEC60335-2-80 220V For Fan

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 7 working days
Brand: PEGO Group
Product Description

IEC60335-2-80 Figure 102 Test Pin for Testing the Fan



1. Introduction

The test pin is completed designed according to IEC60335-2-80 figure 102, it is to simulate the bolt of fan. The pin is fully inserted so that it connects the down rod to the motor. The fan is supplied at rated voltage and operated at maximum speed. The pin is then partially withdrawn so that the motor is connected to the down rod by that part of the pin having diameter b. The supply to the ceiling fan shall be automatically disconnected and the fan shall not be capable of operation without replacing the worn bolt.

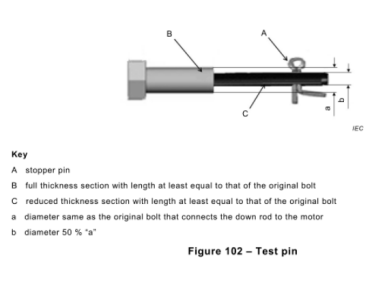

2. Drawings
