Long Warranty Liquid Filling Machine RO Water Treatment 1000-8000l / H Capacity
Water Production Line :
consist of three part: water treatment process, filling and pacakge part, match resin blowing machine.

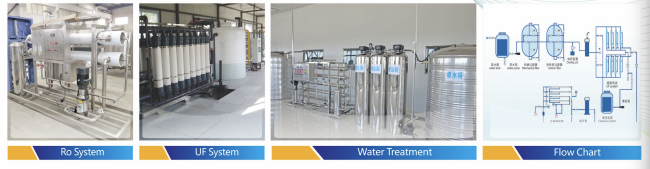

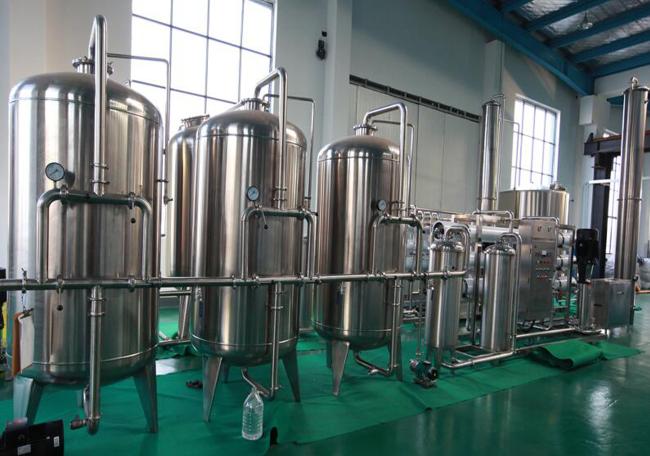

Water treatment
widely use for food line like dairy milk, drink water, beverage, fruit&coffee process, mainly by RO system and UF system, assemble with water tank, water pump, carbon filter, mechanical filter, fine filter, dosing unit, UV light, Ozone generator etc
Water filling machine
by PET, glass bottle etc package, under washing-filling--capping monoblock machine to fill water into reqeust pacakge, then quality check and make label and package for market.
Blowing machine
mainly for PET resin, reduce the package cost during production. by own mold to blow the right shape to be unique.
Equipment List:
| A | Water treatment plant | |
| 1 | Water tank | to storage raw water |
| 2 | Water pump | SUS304,CNP |
| 3 | Rough filteration | Sand&Carbon&resin |
| 4 | Recise filter | 5um/1um |
| 5 | RO reverse osmosis / | UF membrane filtration |
| 6 | UV LIGHT | to sterilization |
| 7 | Ozonator machine | with ozonator tower |
| 8 | Pipe connection(SUS) with CONTROL cabinet | |
| B | Blowing machine | |
| 1 | Semi blowing machine | to blow bottle with differnt capacity |
| 2 | Bottle mold | 1000ML |
| 3 | Bottle mold | 500ML |
| 4 | Chiller for mold | With air filter |
| 5 | Air compressor set | with filter+ dryer |
| C | Filling machine | |
| 1 | Filling machine | washing--filling--capping |
| 2 | Light check | Check filled bottle |
| 3 | Conveyor system | as per site |
| 4 | Sleeve Shrink machine | 150b/h,cap+body |
| 5 | Ink code | Videojet usa |
| 6 | Film wrap machine | PE film to pack |

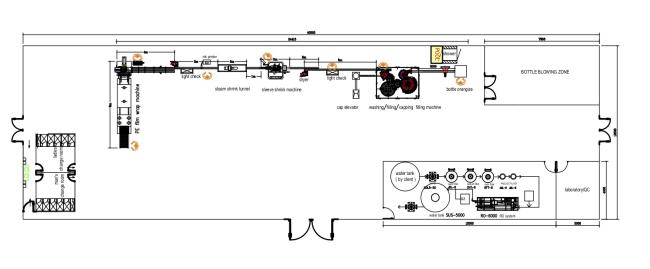

Project picture:
