Carbonated Beverage CIP Cleaning Equipment
Application Area: At present, intelligent CIP system has been widely used in biological fermentation and pharmacy industries which has high requirement to cleaning. Therefore, it can reach the request of sanitation and asepsis.
Operational Principle
Through set programme (adjustable programme). CIP system makes automatically preparation clean liquid, via pneumatic control valve and transfer pump and loop liquid pumb finishing transfer of clean liquid and whole clean process of circulation circle clean and drain and recovery. Through conduct inspection instrument and PLC constituting control system reaches auto online clean.
System Includes

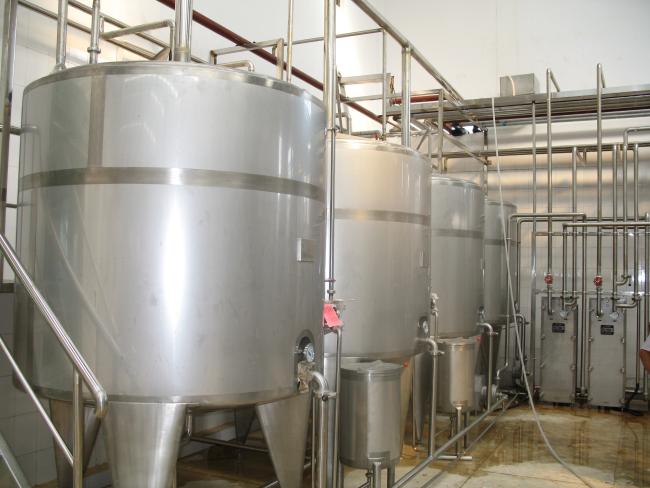

Intelligent CIP system is as central integration system including WFI tank, CIP tank, plate heat exchanger, piping filter, transfer pimp, loop liquid pump, temperature controller, level controller, conduct inspection instrument, PLC touch screen, control cabinet and piping and valves etc.
|
CIP Tank size
|
1000L-10000L
|
||
|
CIP tank type
|
Alcali tank,acid tank,hot water,clean water tank,water recycle tank
|
||
|
Cleaning recycles
|
Single circuit,double circuits,three circuits,four circuits
|
||
|
Heating method
|
Coil pipes inside,plate heat exchanger ,tubular heat exchanger
|
||
|
Automatic types and charastics
|
Full Automatic
|
1. Flow rate auto control;
2. Temperature auto control; 3. Auto compensate the cip liquid level; 4. Auto compensate the liquid concentrate; 5. Cleaning liquids auto transfer; 6. Auto alarm |
|
|
Semi-automatic control
|
1. Temperature auto control
2. Electrical control with manual operate the other matters
|
||
|
Manual control
|
Manual operate on the cleaning process
|
||
