18 Ton Crawler Hydraulic Excavator Rated Speed 4.2km/H Bucket Capacity 0.8m3
18 Ton Crawler Hydraulic Excavator Rated Speed 4.2km/H Bucket Capacity 0.8m3

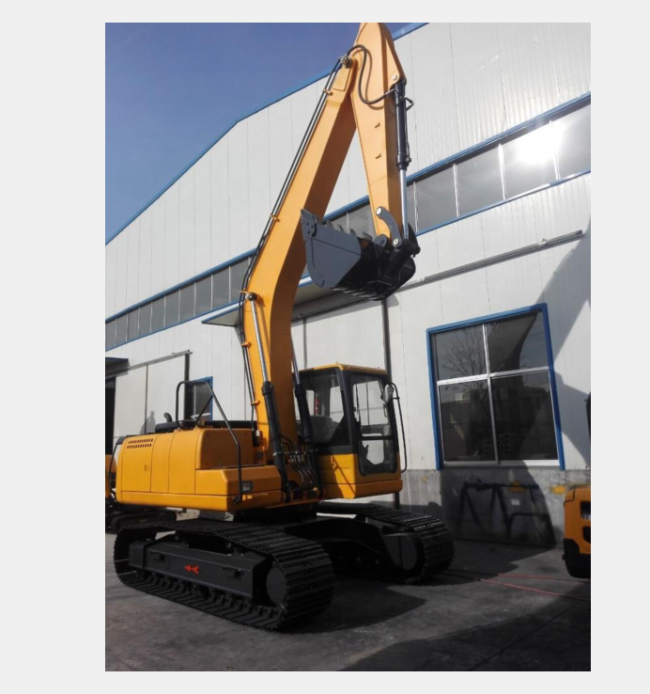

18 Tons Crawler Excavator Machine with Cheap Price for Sale
The crawler excavator is an economic type excavator ,which matched YUCHAI engine with strong power and low consumption and environment protection
Fitted imported brand main pump and valves .
Adopted imported driving motor and swing motor.
Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
The professional structural parts and working mechanism , ensure the machine has reliability and durability .
The breaking pipeline equipped improve the working performance .
Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
The humanized design , ensure the machine can comfortable operation and convenient maintenance.
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make | YUCHAI |
| Model | YC4A140 |
| Power /Rotation speed | 103kw(140HP)@2200rpm |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3/4.2 km/h |
| Width of track shoe | 600mm |
| Number of track shoe per side | 47pcs |
| Number of upper roller per side | 2 |
| Number of bottom roller per side | 7 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.8m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 98KN |
| Maximum Arm digging force | 68KN |
| Hydraulic system pressure | 32Mpa |
| Machine weight | 18000kg |
| Fuel tank | 310L |
| Hydraulic oil tank | 195L |
