6.0 T SUZU 6BG1 Industrial Side Loader Forklifts With 3600mm Max. Lift Height
6.0 Ton with ISUZU 6BG1 Diesel Side Loader Forklift with 3600mm Max. Lift Height
1. In the warehousing process, when the body go into the channel, the fork can face the shelf or goods. In the loading and unloading operations, the forklift can do not turn in the first time,And then work. this characteristic makes side forklift truck is suitable for narrow channel operations.
2. Side forklift is advantageous to the long goods, because long goods is parallel with the body,and this forklift can be not limited by the channel width. The side forklift to faster handling long goods.

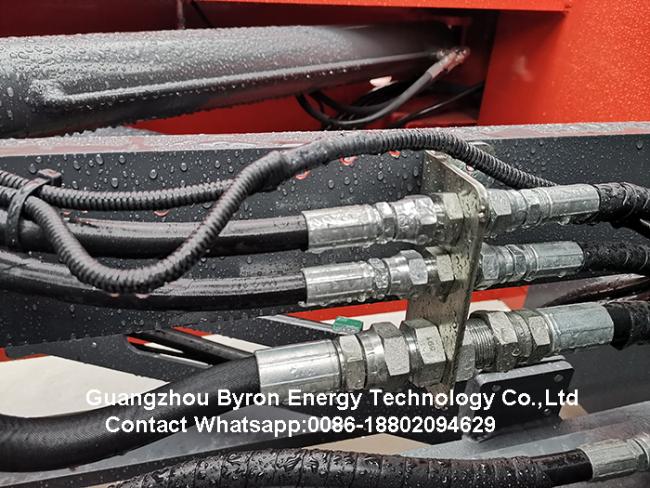

3, This side loader forklift use Japanese Technology Hydraulic system with ISUZU ENGINE.
| CONFIGURATION DIMENSIONS AND PWRFORMANCE | BL50 | BL60 | |
| Rated Capacity | kg | 5000 | 6000 |
| CG of cargo | mm | 600 | 600 |
| Max. lift height | mm | 3600 | 3600 |
| Max. lift speed(laden) | mm/s | 350 | 350 |
| Max. traveling speed(laden) | Km/s | 24 | 24 |
| Fork tilt angle(up/down) | Deg | 3/5 | 3/5 |
| Gradeability | % | 20 | 20 |
| Platform width | mm | 1300 | 1300 |
| Platform lngth | mm | 5150 | 5150 |
| Fork length | mm | 1220 | 1220 |
| Axle spacing | mm | 2800 | 2800 |
| Wheel spacing Front of the wheel spacing | mm | 1750 | 1750 |
| Wheel spacing Behind of the wheel spacing | mm | 1750 | 1750 |
| Overall dimension(LXWXH) | mm | 5150X2100X2800 | 5150X2100X2800 |
| Weight unladen | kg | 8000 | 8500 |
| Tyre size Front wheel | mm | 2-9.00-16-14PR | 2-9.00-16-14PR |
| Tyre size Hindrear wheel | mm | 2-9.00-16-14PR | 2-9.00-16-14PR |
| Engine | |||
| Manufacturer | ISUZU | ISUZU | |
| Model | 6BG1 | 6BG1 | |
| Rated powet/Speed | kw | 82.3/2000 | 82.3/2000 |
