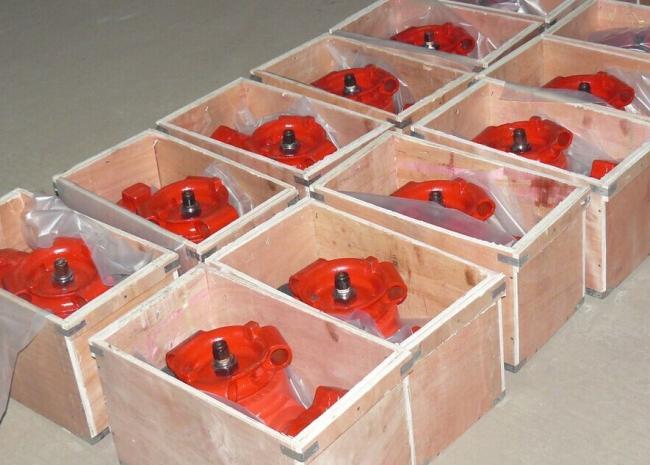

API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold

Oil Wellhead Equipment Component, API 6A Fig. 1502 Plug Valve for Fracturing Manifold

Plug valve is a necessary part that is applied to high pressure manifold in well cementing and fracture service, also selected for high pressure fluid control system. It is excellent for its compact structure, easy maintenance, low torque, and rapid operation, which make it to be the most ideal valve for cementing and fracturing manifold.

The inlet and outlet of plug valve are Fig. 1502 union connections (other connection are also available upon request). Cylinder fits between body and seal segment, and seal rings are inlaid into outside of seal segment for good sealing. Between seal segment and plug is cylindrical metal sealing, has the feature of high matching precision and reliable sealing.

Main Technical Parameters:

Working Pressure: 2000psi ~ 15000psi

Nominal Bore Diameter: 2’’, 3’’

Temperature Class: K~V

Product Specification Level: 1~4

Performance Requirement: 1~2

Material Class: AA~EE

Working Medium: Petroleum, Natural Gas
