Anti Corrosion Oil Well Drilling Tools Spray Sucker Rod Black Color
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
5~30 days
Brand:
TIPTOP
Product Description

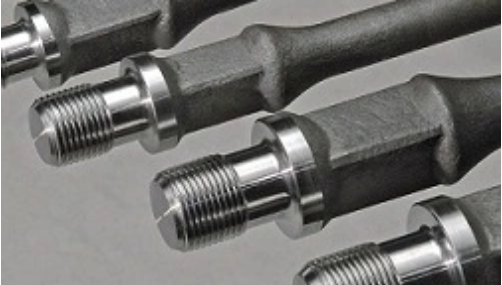

High Strength Oil Well Drilling Tools API 11B Spray Anti-corrosion Sucker Rod
Sucker rod description:
It is a kind of manufacturability anti-corrosion sucker rod, the rod surface spraying a layer of special anti-corrosion materials, used in the medium corrosive well conditions, can prevent the corrosion of rod body and prevent the corrosive material from contacting with the rod body to prolong the life of the rod body.
Spray Anti-corrosion Sucker Rod Specification
| Sucker Rod Nominal Value | Φ16(5/8") | Φ19(3/4") | Φ22(7/8") | Φ25(1") | Φ29(11/8") |
| Rod Body Diameter | 15.88+0.18-0.36 (0.625+0.007-0.014) |
19.05+0.20-0.41 (0.750+0.008-0.016) |
22.23+0.20-0.41 (0.875+0.008-0.016) |
25.40+0.23-0.46 (1.000+0.009-0.018) |
28.58+0.25-0.51 (1.125+0.010-0.020) |
| Outer Diameter Of External Thread Shoulder | 31.8+0.13-0.25 (1.250+0.005-0.010) |
38.1+0.13-0.25 (1.500+0.005-0.010) |
41.3+0.13-0.25 (1.625+0.005-0.010) |
50.8+0.13-0.25 (2.000+0.005-0.010) |
57.2+0.13-0.25 (2.250+0.005-0.010) |
| Wrench Width ±0.8(±0.031) |
22.2(0.875) | 25.4(1.000) | 25.4(1.000) | 33.3(1.313) | 38.1(1.500) |
| Wrench Length | 31.8(1.250) | 31.8(1.250) | 31.8(1.250) | 38.1(1.500) | 41.3(1.625) |
| API Rod Length ±50(±2.0) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
| Domestic Rod Length±50 | 900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
| Upset Flange Diameter | 31.1+0.13-3.17 (1.219+0.005-0.125) |
35.7+0.13-3.17 (1.406+0.005-0.125) |
38.1+0.13-3.17 (1.500+0.005-0.125) |
48.4+0.13-3.17 (1.906+0.005-0.125) |
55.6+0.13-3.17 (2.188+0.005-0.125) |
| AR±3.2(±0.125) | 47.6(1.875) | 57.1(2.250) | 66.7(2.625) | 76.2(3.000) | 85.7(3.375) |
| CR+1.59-0.40 (+0.063-0.016) |
3.2(0.125) | 3.2(0.125) | 4.8(0.188) | 4.8(0.188) | 4.8(0.188) |
