Tapered Api Sucker Rod High Intensity 7/8" - 1 1/2" Size High Strength
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
5~30 days
Brand:
TIPTOP
Product Description

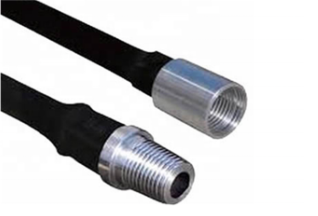

High Strength Oil Well Drilling Tools API 11B Tapered thread sucker rod
Sucker rod description:
It is a sucker rod designed specially for the PCP pump, and the taper thread is designed according to the drill pipe thread, which is applied to a high anti-twist thread on the rod thread.
Its characteristics are:1.It can withstand greater torque.2.Because the pitch is large and the tooth is wide,fastening and unfastening is fast.3.Prevent thread loosening.
Tapered Thread Sucker Rod Specification
| No. | Size | Rod Diameter(mm) | Threading | Length of finished product | |
| 1 | 7/8" | 22.23+0.2-0.41 | NC12 | 8000 | 30FT |
| 2 | 1" | 25.4+0.23-0.46 | NC16 | 7620 | 25FT |
| 3 | 1-1/8" | 28.58+0.25-0.51 | NC16 | 1000 | 2FT |
| 4 | 1-1/4 | 31.75+0.0-0.76 | NC16 | 2000 | 4FT |
| 5 | 1-1/2" | 38.1+0.0-0.0.76 | NC16 | 3000 | 6F |
Mechanical Properties Of Tapered Thread Sucker Rod
| Grade | Minimum Yield Strength (0.2% Residual Deformation) | Minimum Tensile Strength | Maximum Tensile Strength | Elongation 200mm% | Reduction Of Area Z% | Surface Hardness HRC | Core Hardness HB | Fatigue Life | |||
| psi | MPa | psi | MPa | psi | MPa | ≥13 | ≥50 | ≥1.0X106 | |||
| D | 85000 | 586 | 115000 | 793 | 140000 | 965 | ≥13 | ≥50 | |||
| KD | 85000 | 590 | 115000 | 795 | 140000 | 965 | ≥13 | ≥50 | |||
| HL | 115000 | 795 | 140000 | 965 | 173339 | 1195 | ≥13 | ≥45 | |||
| HY | / | / | 140000 | 965 | 173339 | 1195 | / | / | ≥42 | ≥224 | |
Tapered Thread Sucker Rod Torque Value
| Grade/Torque/Size | D | HL | HY |
| 7/8" | ≥1000 | ≥1200 | ≥1800 |
| 1" | ≥1500 | ≥1800 | ≥2200 |
| 1-1/8" | ≥2200 | ≥2900 | ≥3200 |
| 1-1/4" | ≥3000 | ≥3900 | ≥4300 |
