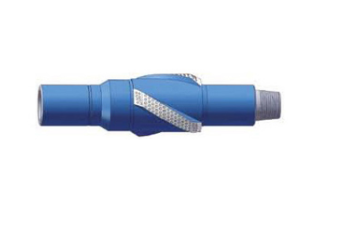

Steel Downhole Drilling Tools 17″ Interchangeable Blades Stabilizer
SJ-TY 17″ Interchangeable Blades Stabilizer according to API
Introduction:
Name: Interchangeable Blades Stabilizer
Specifications: All specifications
Remarks: Ordering size, connection thread; If you have special request, please elaborate.
SJ-TY Interchangeable blades stabilizer has sixteen diameters by changing the blades in different height and the spacers in different thickness. Its oriented and stability can be improved by changing the blades. It is an ideal tool for the drilling operation which has no based installation and located faraway place. And reduced the stock and delivery cost.
Specifications:
| Model |
Fishing Neck OD mm(inch) |
Body OD mm(inch) |
ID mm(inch) |
Conn. |
OAL mm(inch) |
Interchangeable Diameter mm(inch) |
| SJ-TY17″ | 864(34) | 241.3(9 1/2) | 76.2(3) | 7 5/8REG | 2650(104) |
417.50(16 7/16) ～ 444.50(17 1/2) |
