API 7K Drill Collar Slip , Oilfield Drilling Rotary Slips DCS 3 '' ~ 14 ''
Tubular Handling Tool API 7K Drill Collar Slip, Rotary Slip DCS 3''~14''

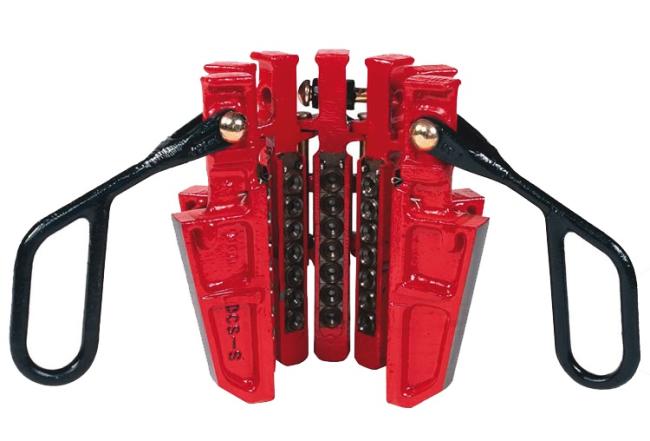

There are three types of DCS drill collar slips: S, R and L. They can accommodate drill collars from 3’’ (76.2mm) to 14’’ (355.6mm) OD. The handling sizes can be adjusted by changing the quantity of inserts or slip body. It is manufactured in a structure of multi-segment pieces with firm structure, light weight, and large holding range, which is easy to fit the changing of the OD of the drill collar.
| Model | DCS-S | DCS-R | |||
| Drill Collar OD | in | 3~4 | 4~4 7/8 | 4 1/2~6 | 5 1/2~7 |
| mm | 76.2~101.6 | 101.6~123.8 | 114.3~152.4 | 139.7~177.8 | |
| Insert PN & Qty | 2628-49 | 2620-49 | 2628-63 | 2620-63 | |
| Total Number of Segments | 7 | 7 | 8-9 | 9 | |
| Weight | Kg | 51 | 47 | 54 | 51 |
| Insert Bowl Number | API or No. 3 | ||||
| Model | DCS-L | ||||
| Drill Collar OD | in | 6 3/4~8 1/4 | 8~9 1/2 | 8 1/2~10 | 9 1/4~11 1/4 | 11~12 3/4 | 12~14 |
| mm | 171~210 | 203~241 | 216~254 | 235~286 | 279~324 | 305~356 | |
| Insert PN & Qty | 2630-88 | 2630-96 | 2627-104 | 2630-112 | 2625-128 | 2630-136 | |
| Total Number of Segments | 11 | 12 | 13 | 14 | 15-16 | 17 | |
| Weight | Kg | 70 | 78 | 84 | 90 | 90.5 | 94 |
| Insert Bowl Number | API or No. 3 | No. 2 | No. 1 | ||||
Drill collar slip Type A are multi-segments slips. They can accommodate the changes of OD after abrasion of drill collar. They are with light weight, large handling scale and reliable quality.
| Model | Drill Collar Slips Type A | |||||||
| Drill Colalr OD | in | 3~4 1/2 | 3 1/4~4 3/4 | 4 1/4~5 3/4 | 5 1/2~7 | 6 3/4~8 1/4 | 8 1/4~10 | 10~11 3/4 |
| mm | 76.2~114.3 | 82.55~120.65 | 107.95~146.05 | 139.7~177.8 | 171.5~209.55 | 209.55~254 | 254~298.45 | |
| Insert Bowl No. | API or No. 3 | No. 2 | ||||||
Drill collar slip Type WT can accommodate drill collar sfrom 4 1/2’’ (114.3mm) to 9 1/2’’ (241.3mm) OD.
| Model | Drill Collar Slip Type WT | ||||
| Drill Collar OD | in | 4 1/2~6 | 5 1/2~7 | 6 3/4~8 1/4 | 8~9 1/2 |
| mm | 114.3~152.4 | 139.7~177.8 | 171.4~209.6 | 203.2~241.3 | |
| Weight | Kg | 49 | 46 | 42 | 39 |
| Insert Bowl No. | API or No. 3 | ||||
| Max. Load | 40 Tons | ||||
They are all designed and manufactured according to API Spec 7K specification for drilling and well servicing equipment.
