API 16D High Pressure BOP Hose for well control
Price:
Negotiation
MOQ:
1pc
Delivery Time:
3~20 days
Brand:
TIPTOP
Product Description
API 16D BOP hose for Well Control , High Pressure hydraulic BOP hose
Scope of application: the hose for well control high-pressure, fire resistant and heat insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high temperature and flammable places in the metallurgic industry.

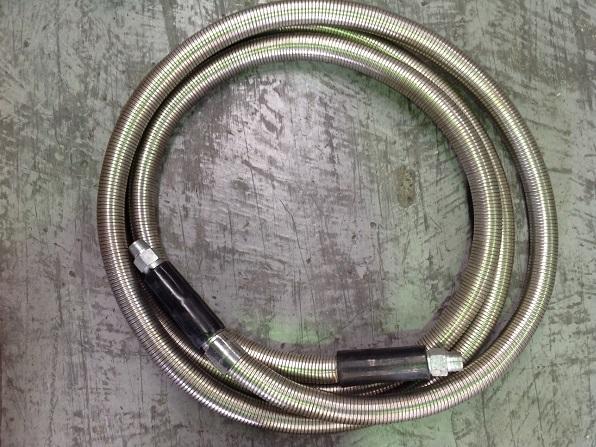

Product classification: high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
Applicable Standard: API Spec 16D
Specification
| ID (mm) | OD of hose assembly (mm) | Operating Pressure (Mpa) | Min. burst pressure (Mpa) | Min. bending radius (mm) | Thread | Operating time (min.) with fire-resisting at 750°C | |
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 | NPT, LP |
5 | 25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
