QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3working days
Brand:
UTOPTEK
Product Description
QSFP28-100G-ZR4
QSFP28 100GBASE-ZR4 1310nm 80km
1.Product Features:
- Supports 100GBASE 100GE;
- Lane bit rate 25.78 Gb/s 100GE
- Up to 80km transmission on SMF;
- LAN WDM EML laser and PIN receiver with SOA;
- Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
- High speed I/O electrical interface (CAUI-4);
- I2C interface with integrated Digital Diagnostic monitoring;
- QSFP28 MSA package with duplex LC connector;
- Single +3.3V power supply;
- Typical power consumption 6.5 W;
- Operating case temperature: 0 to +70 °C;
- Compliant to IEEE 802.3bm and ITU-T G.959;
- Compliant to SFF-8665 and SFF-8679;
- Complies with EU Directive 2015/863/EU;
2.Applications:
- 100GBASE-ZR4;
3.Technical specifications:
| Brand | UTOPTEK, OEM |
| Condition | 100% New |
| Form Factor | QSFP28 |
| Fiber Type | Single mode, duplex LC |
| Wavelength: | 1310nm |
| Distance | 80KM |
| Data Rate (max) | 100Gb/s |
| Working Temperature (°C) | 0°C~70°C |
| Storage Temperature (°C) | -40°C~+85°C |
| Relative Humidity | 0~85% |
| Voltage Supply | 3.3V |
| Power consuption | <2.5W |
| Connector | LC connector |
| Warranty | 3 years |
| Compatible with | Cisco, Haiwei, HP etc. |
| Time of delivery | 1-2 working days |
| Package | 4pcs/box |

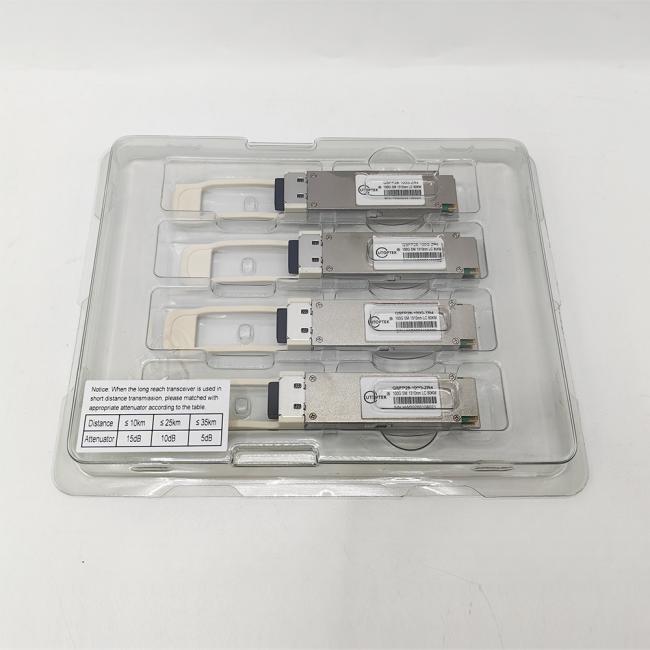

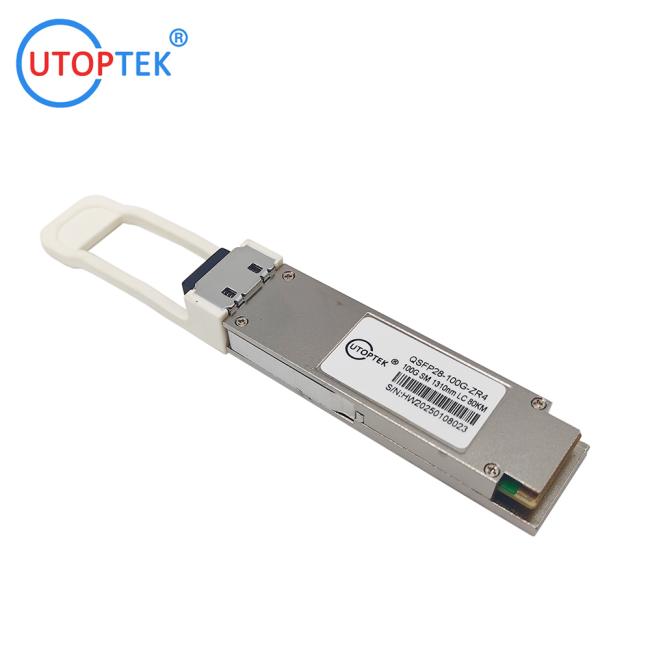

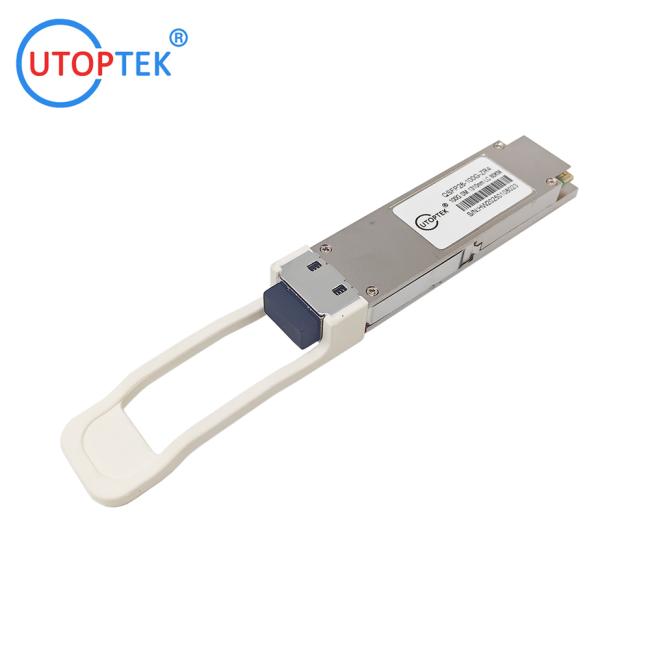

4. Detailed photoes:
5.Factory Show:
6.Compatibility:
7.Ordering Information:
| 100Gbps QSFP28 Transceiver | ||||||||
| Part No. | Data Rate | Form Factor | Distance | Wavelength | Transmitter | Receiver | Interface | Temp. |
| QSFP28-100G-SR4 | 100Gb/s | QSFP28 | 100m | 850nm | VCSEL | PIN | MPO | 0-70℃ |
| QSFP28-100G-LR4 | 100Gb/s | QSFP28 | 10km | 1310nm | DFB | PIN | LC | 0-70℃ |
| QSFP28-100G-LR4 | 100Gb/s | QSFP28 | 20km | 1310nm | DFB | PIN | LC | 0-70℃ |
| QSFP28-100G-ER4 | 100Gb/s | QSFP28 | 40km | 1310nm | EML | APD | LC | 0-70℃ |
| QSFP28-100G-PSM4 | 100Gb/s | QSFP28 | 2km | 1310nm | DFB | PIN | MPO | 0-70℃ |
| QSFP28-100G-CWDM4 | 100Gb/s | QSFP28 | 10km | 1270-1330nm | CWDM4 | LC | 0-70℃ | |
| QSFP28-100G-CWDM4 | 100Gb/s | QSFP28 | 2km | 1270-1330nm | CWDM4 | LC | 0-70℃ | |
| QSFP28-100G-ZR4 | 100Gb/s | QSFP28 | 80km | 1310nm | EML | PIN | LC | 0-70℃ |
