Factory OEM 2ch 1080P BNC video+1Rs485 over Fiber FC/SC 20km HD-CVI/AHD/TVI 1080P Coaxial Video over Fiber Converter
2ch 1080P BNC video+1Rs485 over Fiber FC/SC 20km, HD-CVI/AHD/TVI 1080P Coaxial Video over Fiber Converter
Product Description:
The 2-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 2 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Features:
•Lossless non-compression real time transmission.
•Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM
•Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz
•Advanced lightning protection design ,support 5.7KV lightning protection
•Through LED indicators to inform its functional mode
•Industrial wide range of operational temperature
•Stand-alone or Rack-mounted, simple installation.
Technical Parameters:
| Optical | |
| Wavelength | WDM:1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -26dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
| Video | |
| Number of Channels | 2 |
| Input/output impedance | 75 Ohm (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 50MHz |
| Sampling Bandwidth | 8bit |
| Sampling Frequency | 108MHz |
| Signal to noise ratio | >67dB |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
| Supporting video pixel |
1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX |
| Data | |
| Protocol | Default :RS485 (RS232/RS422 Optional) |
| Number of channels | 1 |
| Connector | 5pins Terminal Blocks |
| Data Rate | 0-200Kbps |
| Directions | Default :Simplex from Rx to Tx (BIDI duplex optional) |
|
Mechanical Structure & Environment |
|
| Power | DC5V 2A |
| Power Consumption | ≤6W |
| Working Temperature | -15ºC ~65ºC |
| Storage Temperature | -40ºC ~85ºC |
| Relative Humidity | 5%~95% ( no condensation) |
| MTBF | ≥ 100000Hours |
Packing and Shipping:
- UTOPTEK's Fiber Media Converter are packaged in a foam boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.
- The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

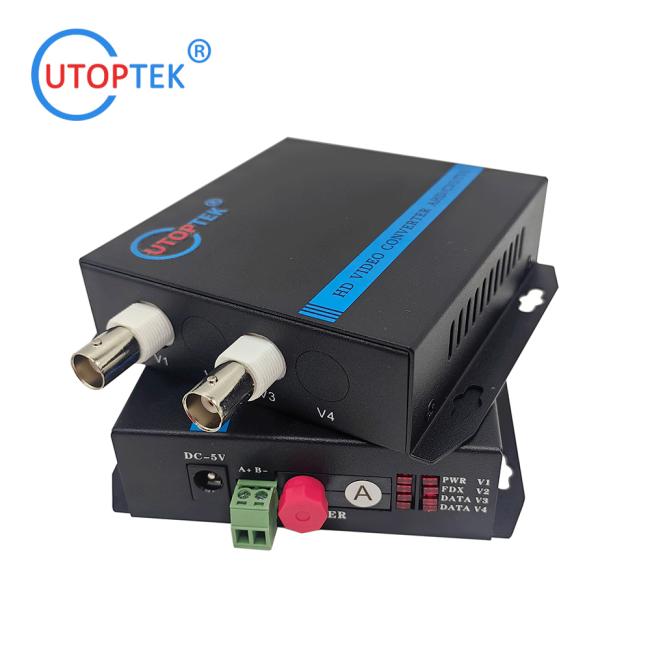

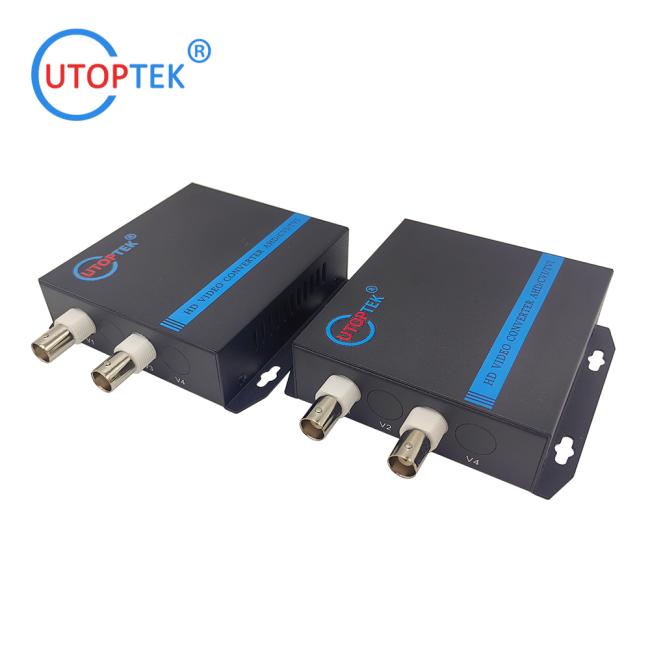

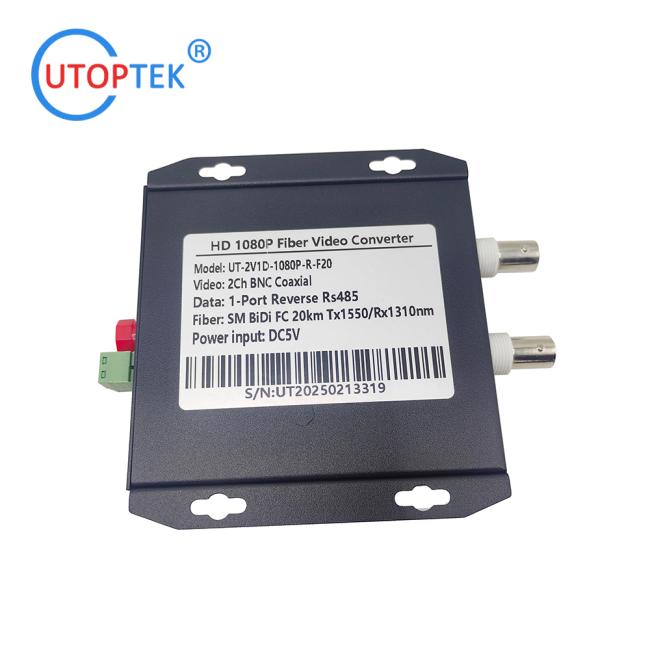

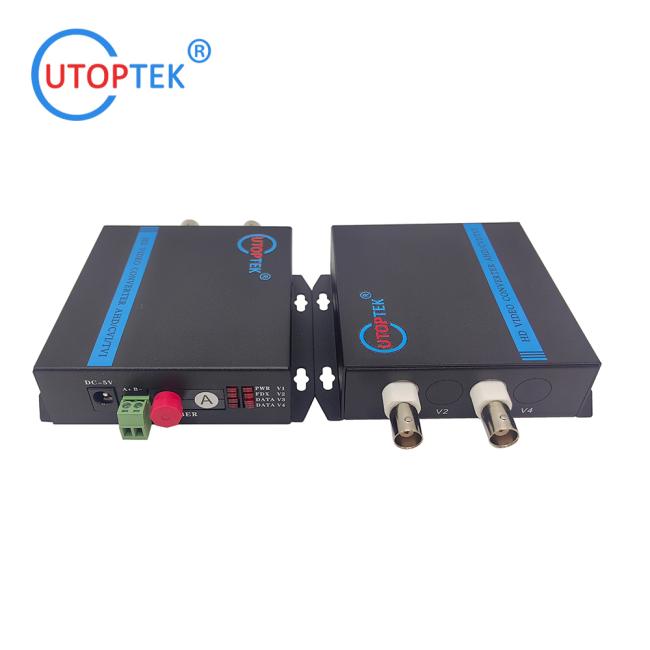

Product photoes:
Product Application:
Ordering Models:
| SD Coaxial Video over Fiber Converter (Not Support HD) | ||
| P/N | Description | unit |
| UT-1V-T/R-F20 | 1*BNC video, NO data, SM single fiber, 20KM, FC, Iron,1V↑, with External power supply. | Pair |
| UT-1V1D-T/R-F20 | 1*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,1V↑+1D↓, with External power supply. | Pair |
| UT-2V-T/R-F20 | 2*BNC video, NO data, SM single fiber, 20KM, FC, Iron,2V↑, with External power supply. | Pair |
| UT-2V1D-T/R-F20 | 2*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,2V↑+1D↓, with External power supply. | Pair |
| UT-4V-T/R-F20 | 4*BNC video, NO data, SM single fiber, 20KM, FC, Iron,4V↑, with External power supply. | Pair |
| UT-4V1D-T/R-F20 | 4*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,4V↑+1D↓, with External power supply. | Pair |
| UT-8V-T/R-F20 | 8*BNC video, NO data, SM single fiber, 20KM, FC, Iron,8V↑, with External power supply. | Pair |
| UT-8V1D-T/R-F20 | 8*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,8V↑+1D↓, with External power supply. | Pair |
| UT-16V-T/R-F20 | 16*BNC video, NO data, SM single fiber, 20KM, FC, Iron,16V↑, with External power supply. | Pair |
| UT-16V1D-T/R-F20 | 16*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,16V↑+1D↓, with External power supply. | Pair |
| UT-32V-T/R-F20 | 32*BNC video, NO data, SM single fiber, 20KM, FC, Iron,32V↑, with External power supply. | Pair |
| UT-32V1D-T/R-F20 | 32*BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,32V↑+1D↓, with External power supply. | Pair |
| HD-CVI/AHD/TVI 1080P Coaxial Video over Fiber Converter | ||
| UT-1V-1080P-T/R-F20 | 1*1080P BNC video, NO data, SM single fiber, 20KM, FC, Iron,1V↑, with External power supply. | Pair |
| UT-1V1D-1080P-T/R-F20 | 1*1080P BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,1V↑+1D↓, with External power supply. | Pair |
| UT-2V-1080P-T/R-F20 | 2*1080P BNC video, NO data, SM single fiber, 20KM, FC, Iron,2V↑, with External power supply. | Pair |
| UT-2V1D-1080P-T/R-F20 | 2*1080P BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,2V↑+1D↓, with External power supply. | Pair |
| UT-4V-1080P-T/R-F20 | 4*1080P BNC video, NO data, SM single fiber, 20KM, FC, Iron,4V↑, with External power supply. | Pair |
| UT-4V1D-1080P-T/R-F20 | 4*1080P BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,4V↑+1D↓, with External power supply. | Pair |
| UT-8V-1080P-T/R-F20 | 8*1080P BNC video, NO data, SM single fiber, 20KM, FC, Iron,8V↑, with External power supply. | Pair |
| UT-8V1D-1080P-T/R-F20 | 8*1080P BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,8V↑+1D↓, with External power supply. | Pair |
| UT-16V-1080P-T/R-F20 | 16*1080P BNC video, NO data, SM single fiber, 20KM, FC, Iron,16V↑, with External power supply. | Pair |
| UT-16V1D-1080P-T/R-F20 | 16*1080P BNC video+1*Reverse Rs485 data, SM single fiber, 20KM, FC, Iron,16V↑+1D↓, with External power supply. | Pair |
FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
