Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3working days
Brand:
UTOPTEK
Product Description
Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
1.Product Features:
-
QSFP-DD MSA compliant
-
8 parallel lanes on 850nm center wavelength
-
Compliant to IEEE 802.3bs Specification
-
Maximum link length of 70m on OM3 and 100m on OM4
-
Operating case temperature: 0 to 70℃
-
8x53.125Gb/s electrical interface (400GAUI-8)
-
Data Rate 53.125Gbps (PAM4) per channel
-
Maximum power consumption 8W
-
MPO-16 connector
2.Applications:
-
400G Ethernet
-
Data Center Interconnect
-
Data center Enterprise networking
3.Technical specifications:
| Brand | UTOPTEK, OEM |
| Condition | 100% New |
| Form Factor | QSFP-DD |
| Fiber Type | Multi mode |
| Wavelength: | 8500nm |
| Distance | 100M |
| Data Rate (max) | 400Gb/s |
| Working Temperature (°C) | 0°C~70°C |
| Storage Temperature (°C) | -40°C~+85°C |
| Relative Humidity | 0~85% |
| Voltage Supply | 3.3V |
| Power consuption | <2.5W |
| Connector | MPO-16 connector |
| Warranty | 3 years |
| Compatible with | Cisco, Haiwei, HP etc. |
| Time of delivery | 1-2 working days |
| Package | 5pcs/box |

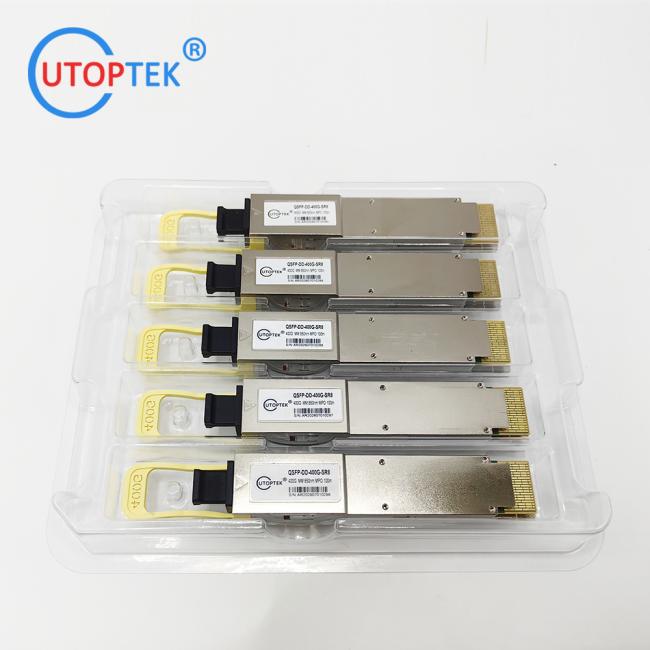

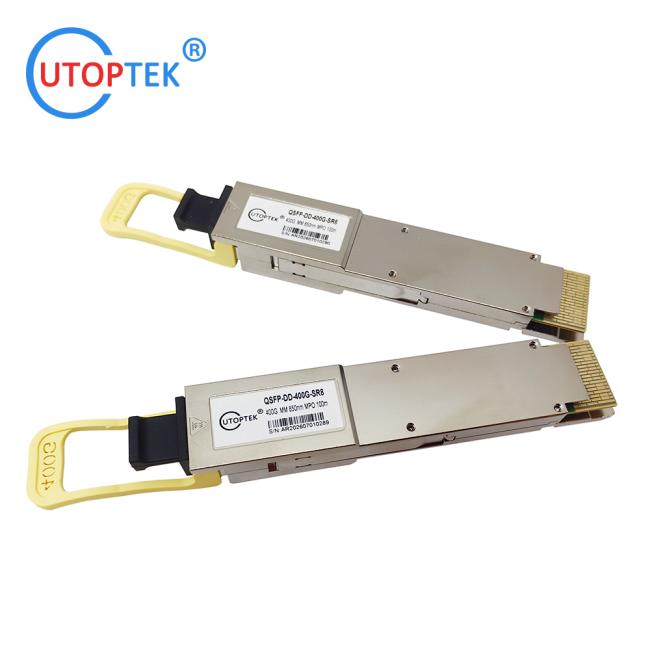

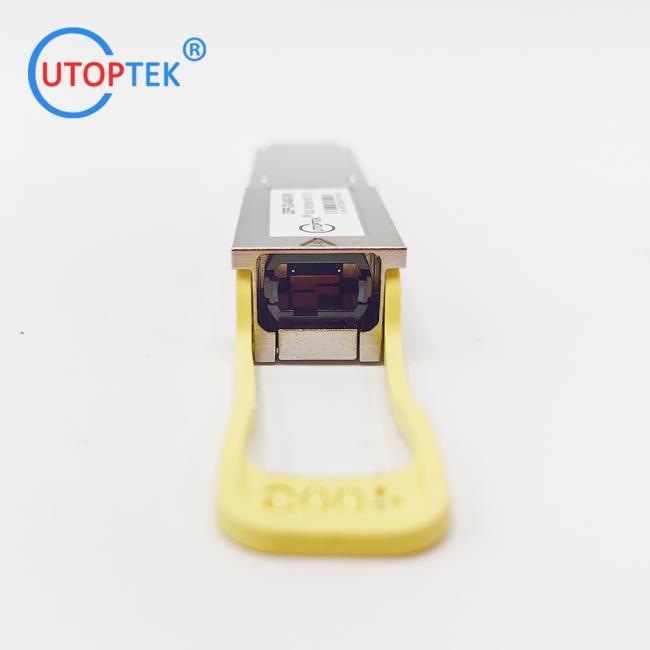

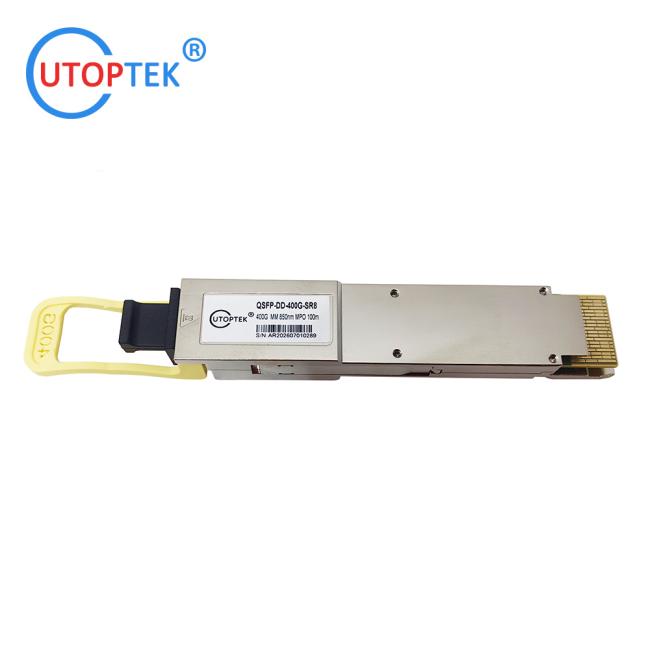

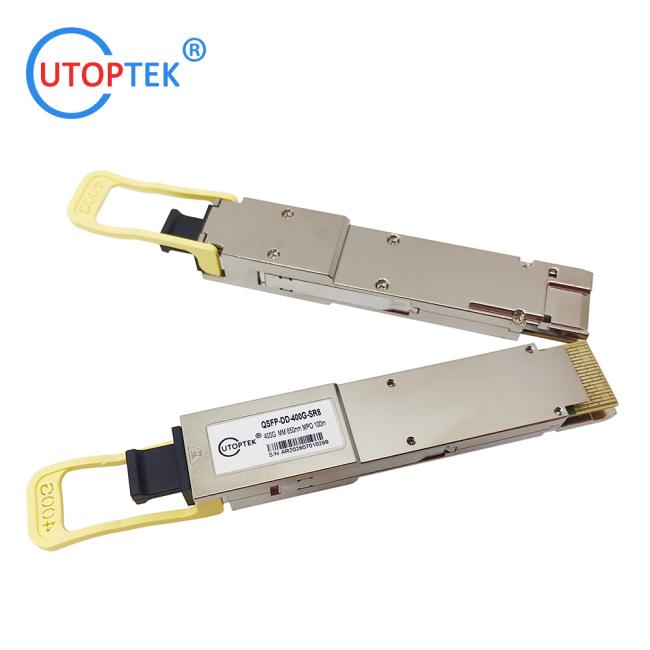

4. Detailed photoes:
5.Factory Show:
6.Compatibility:
7.Ordering Information:
| 400Gbps QSFPDD Transceiver | ||||||||
| Part No. | Data Rate | Form Factor | Distance | Wavelength | Laser | optical power | Interface | DDM |
| QSFP-DD-400G-SR8 | 400G | QSFP-DD | 100m | 850nm | VCSEL | PIN | MPO-16 | 0-70℃ |
| QSFP-DD-400G-SR4 | 400G | QSFP-DD | 100m | 850nm | VCSEL | PIN | MPO-16 | 0-70℃ |
| QSFP-DD-400G-DR4 | 400G | QSFP-DD | 500m | 1310nm | EML | PIN | MPO-12 | 0-70℃ |
| QSFP-DD-400G-FR4 | 400G | QSFP-DD | 2km | CWDM4 | EML | PIN | LC-Duplex | 0-70℃ |
| QSFP-DD-400G-LR4 | 400G | QSFP-DD | 10km | 1310nm | EML | PIN | LC-Duplex | 0-70℃ |
| QSFP-DD-400G-LR8 | 400G | QSFP-DD | 10km | 1310nm | EML | PIN | LC-Duplex | 0-70℃ |
| QSFP-DD-400G-ER4 | 400G | QSFP-DD | 40km | 1310nm | EML | APD | LC-Duplex | 0-70℃ |
| QSFP-DD-400G-ER8 | 400G | QSFP-DD | 40km | 1310nm | EML | APD | LC-Duplex | 0-70℃ |
| QSFP-DD-400G-ZR | 400G | QSFP-DD | 80km | 1310nm | EML | APD | LC-Duplex | 0-70℃ |
| OSFP-400G-SR8 | 400G | OSFP | 100m | 850nm | VCSEL | PIN | MPO-16 | 0-70℃ |
| OSFP-400G-DR4 | 400G | OSFP | 500m | 1310nm | EML 1310nm | PIN | MPO/MTP | 0-70℃ |
| OSFP-400G-FR4 | 400G | OSFP | 2KM | CWDM4 | EML CWDM | PIN | LC | 0-70℃ |
