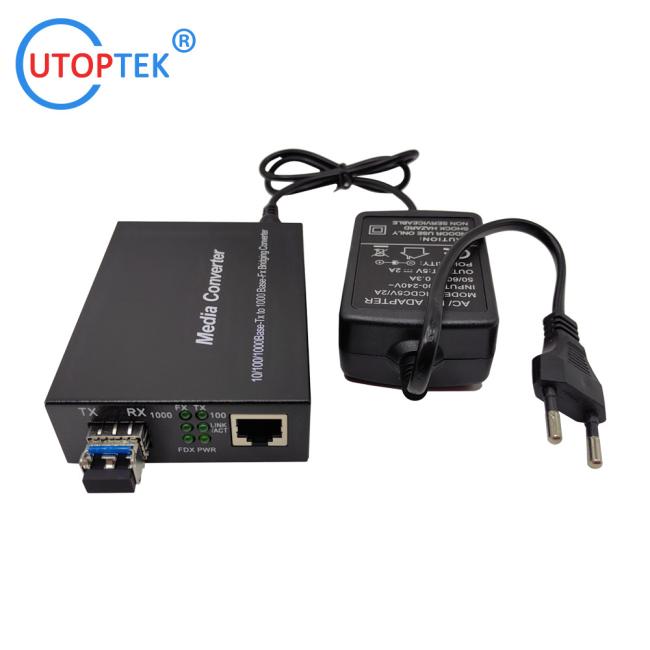

10/100/1000Mbps RJ45 to SFP media converter with DC5V power supply
10/100/1000Mbps RJ45 to SFP Fiber media converter with DC5V power supply
Product Description:
The Gigabit stand-alone Ethernet Media Converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.
Features:
- 1x 10/100/1000Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode from the TX port
- LEDs Indicate Ethernet, Fiber Link and the Power Status at a Glance
- Plug-and-play, Support 19inch 2U 14Slots Chassis & Stand-alone Use
- Extends Fiber distances up to: 0~2km on Multimode, 0~120km on Single Mode
- Fiber port support ST, SC, FC(1*9), SFP optical connectors are optional
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Technical Parameters:
| Fixed Port | 1*10/100/1000Base--TX RJ45 port (Data) |
| 1*1000M Optical Fiber Port | |
| Network Protocol | IEEE802.3 |
| IEEE802.3i 10BASE-T | |
| IEEE802.3u100BASE-TX | |
| IEEE802.3ab 1000BASE-TX/FX | |
| Port Specification | 10/100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 1024Mbps |
| Packet Forwarding | 7.2Mpps |
| MAC Address | 4K |
| Buffer | 2.5M |
| MTBF | >100,000 hours |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) |
| 100BASE-TX : Cat5 or later UTP(100 meter) | |
| 1000BASE-TX : Cat5 or later UTP(100 meter) | |
| Multi mode double fiber(MAX 850M/2KM) | |
| Single mode double fiber (default 20KM) | |
| Single mode single fiber(default 20KM) | |
| Optional 3-120KM Optical Fiber Module | |
| Watt | ≤5W |
| LED Indicator | PWR:Power LED |
| PDX:Working status LED | |
| TX :Network Port LED | |
| FX:(Optical fiber LED) | |
| Link/Act(Optical Fiber Port State LED) | |
| Power | External power: DC5V ; Input: AC100~240V;50/60Hz |
| Operating Temperature/Humidity | 0～+70°C; 5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -20～+75°C; 5%～95% RH Non coagulation |
| Product size/Packing size(L*W*H) | 94mm*70mm*25mm |
| 230mm*125mm*55mm | |
| N.W/G.W(kg) | 0.18kg/0.36kg |
| Installation | Desktop (optional wall hanger+machine hanger parts) |
| Lightning Protection level | 3KV 8/20us |
| IP30 | |
| Certificate | CE mark, commercial; CE/LVD EN60950； |
| FCC Part 15 Class B; RoHS; CNAS;MA | |
| Warranty | Whole device for 1 year |
Packing and Shipping:
Fiber Media Converters are packaged in foam-lined boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, serial number, and the customer's name and address.
The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.
Product photoes:
Customers' Feedbacks:
Ordering Models:
| UT-MC2101-SX | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 2km SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC2101-S20 | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC2101-S20A | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC2101-S20B | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC2101-SFP | 10/100M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC3101-SX | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN MM 2km SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC3101-S20 | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC3101-S20A | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC3101-S20B | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC3101-SFP | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC1G-2SFP | 10/100/1000M SM to MM media converter, 2*SFP port, External DC5V power supply |
| UT-MC1G-2SC | 10/100/1000M SM to MM media converter, SM duplex SC 1310nmkm to MM duplex SC 850nm 550m, External DC5V power supply |
| UT-RACK-14-2U | 19'' 2U 14slot Rack mount Chassis , for Standalone media converters,with dual power supply |
| UT-MC10G-SFP | 10G media converter, 1*RJ45+1*SFP port, External DC12V power supply |
| UT-MC10G-2SFP | 10G OEO converter, 2*SFP+ port, External DC12V power supply |
FAQ:
A1: Fiber Media Converter is a device designed to convert optical signals from one fiber type to another type, which is provided by UTOPTEK. The model number is UT-MC3101-SC20. It has CE certification, and comes with 2 minimum order quantity. It can be packaged in 60pcs/Carton and delivery time is 2-3days. Payment terms include T/T, WU, Paypal, Alipay, and RMB pay. The supply ability is 5000pcs per week.
A2: The brand name of Fiber Media Converter is UTOPTEK.
A3: Fiber Media Converter is from China.
A4: The minimum order quantity is 2.
A5: The payment terms include T/T, WU, Paypal, Alipay, and RMB pay.
