14slots Media converter RACK Chassis Mount 19inch 2U dual AC power for CCTV Network using
Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using
Overview:
This UT-RACK-14-2U Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 14 media conversion modules. In addition to the internal power supply, a back up supply is available as an optional extra. The power of the Rack can be supplied by the type of single power or dual power. Adopting dual power supply, the load of each power can be reduced and the life of the power would extend. When one power supply is at fault, the other one can still work independently. It would enhance the reliability of the RACK.
Features:
1. Supplying the Converters or Powers to be plugged and played.
2. 14 slots for media converter module
3. Auto-identify MDI/MDIX
4. Full/half duplex auto negotiation
5. Low power loss and good heat dissipation
6.Stable performance, large capacity of power supply, ease for management and maintenance
7. 2U high: 19-inch standard design
Technical sheet:
| Product name | Media Converter RACK Chassis |
| Model | UT-RACK-14-2U |
| Shell Material | Iron |
| Capacity | 14 slots |
| Power |
Input: AC 100 ~ 260V, 50~60HZ Output: DC 5V 12A |
| Power protection | protection from over voltage, over current and short circuit |
| Operating Temp | 0 °C to +70°C |
| Storage Temp | -20 °C to +80 °C |
| Relative Humidity | 5%~95% ( no condensing ) |
| Dimensions | 482mm* 230mm*90mm |
| N.W/G.W | 5.2kg/6kg |

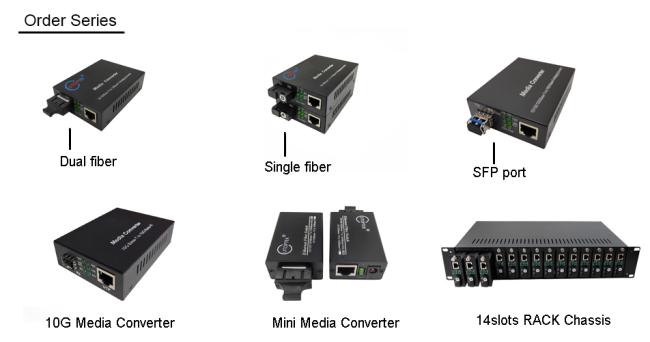

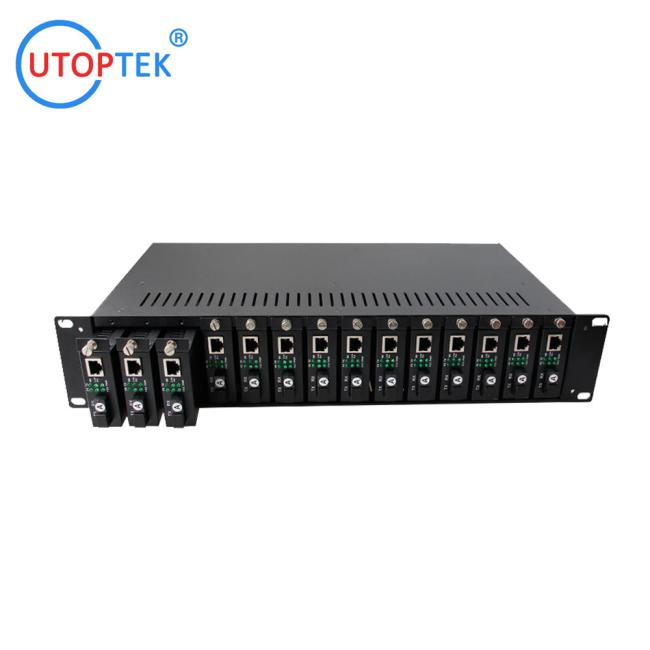

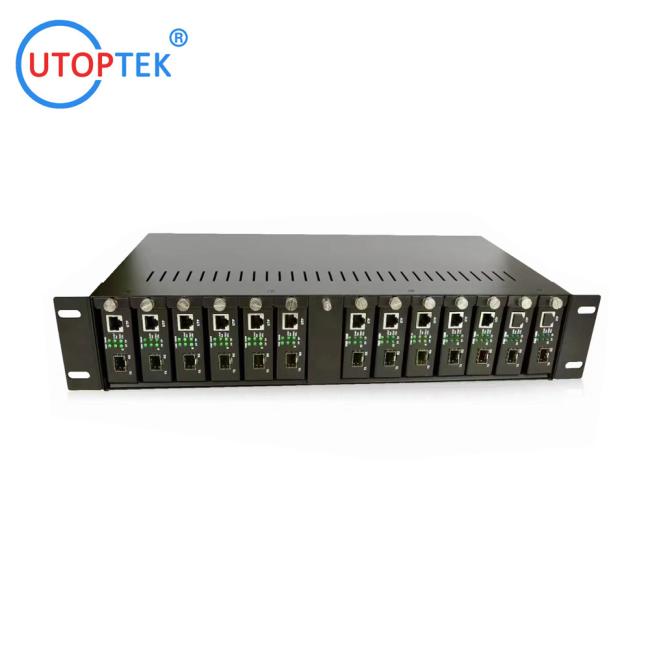

Products show:
Connection topology:
Order Models:
| RACK Chassis | UT-RACK-14-2U | 19'' 2U 14slot Rack mount Chassis for Standalone media converters,with dual power supply |
| ACK Chassis | UT-RACK-16-2U | 19'' 2U 16slot Rack mount Chassis for Card type media converters,with dual power supply |
