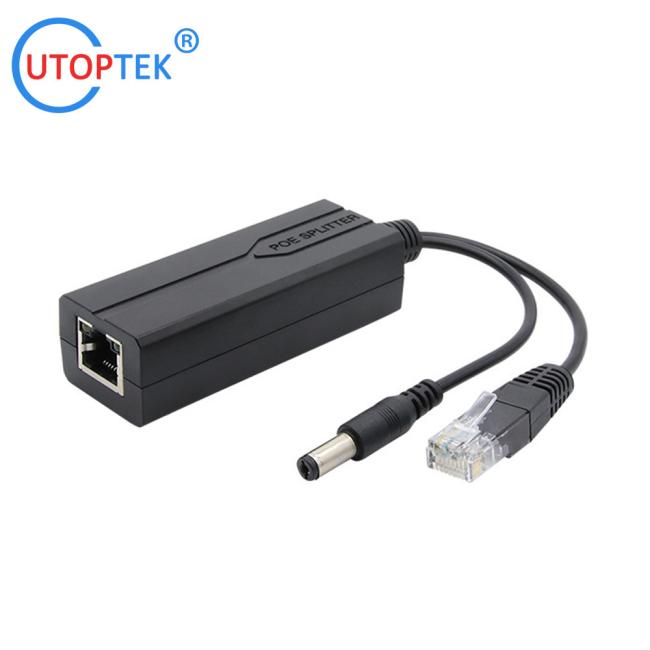

10/100M or 1000M 48V to 12V Isolated PoE Splitter Active IEEE802.3af/at for CCTV IP/APs/48V POE Switch
10/100M PoE Splitter, 48V to 12V, IEEE802.3af, Isolated type
Model: UT-PS4812
Description:
This is a POE ethernet & power splitter device which is based on IEEE802.3 af, it can work with POE power supply device (such as POE switch) which meet the IEEE802.3af standard and provide the network and power for the device which can not support POE. This product is widely used in security surveillance and network engineer.
Features
1. Protection: Excellent circuit isolation protection, effectively improve product's lightning, ESD and anti-interference ability;
2. Power Supply: Compatible with mode A (End-Span) and mode B(Mid-Span);
3. Standard: IEEE 802.3 af, IEEE 802.3, IEEE 802.3u;
4. Power Output: DC12V and use terminal block to connect;
5. Appearance and Structure: Compact size, easily install.
6. Operation: Plug and play, no need settings.
Technical:
| Item | Description | |
| PoE Power Supply | Protocol | IEEE803.2af |
| Power Supply | Compatible Mode A (End-Span) and Mode B (Mid-Span) | |
| Power Consumption | ≤18W | |
| Input Voltage | PoE 36V-57V | |
| Output Voltage | DC 12V | |
| Output Ripple | <5% | |
| Ethernet Port | Ethernet Port | 1×RJ45 Input |
| Transmission Speed | 10/100Mbps | |
| Transmission Medium | Cat5/5e/6 Standard Network Cable | |
| Transmission Distance | 100m (Maximum) | |
| LED Status Indicator | Input PoE Power Indicator | 1 (POE IN Port RJ45 Yellow Light) |
| Output DC Power Indicator | 1 (Ethernet Port RJ45 Yellow Light) | |
| Protection | ESD | 1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2 |
| Lightning Protection | Power: 2KV Signal: 1KV Per: IEC61000-4-5 |
|
| Environmental | Working Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ | |
| Humidity (non-condensing) | 0~95% | |
| Mechanical | Dimension (L×W×H) | 82mm×61mm×25mm |
| Material | Aluminum | |
| Color | Black | |
| Weight | 123g | |
| Stability | MTBF | >30000h |
Diagram:
Ordering models:
| Model | Description |
| UT-PS4812 | 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV |
| UT-PS4805 | 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812G | 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4805G | 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812W | White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af |
| UT-PS4805-USB | Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-USB | Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805-TypeC | Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-TypeC | Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS2412W | White Waterproof 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS2412 | Black color, 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS4824 | Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV |
