Overview:

The Model UT-1EP2W-S/M digital video signal transmitter can extend the transmission distance of the digital camera's video signal, POE is also supported, The camera and other terminal POE devices can be powered by the transmitter, No separate power supply is required. The product adopts industrial grade design, Applicable to all kinds of video transmission systems, Such as security monitoring system, Elevator video network coverage, Multimedia Network Teaching System, Industrial Automations, Medical monitoring display system, Advertising screen real-time playback system.

Key Feature

1.Support the local end to power the remote device,the maximum output is 30W.

2.Support 2 megapixels HD video transmission.

3.Support multiple cable transmission.

4.Support multicast function.

5. Support POE over Coaxial/TP

6. High power POE (up to 30W, compliant with IEEE 802.3af/at standard)

7. Transparent transmission, no need for software adjustment, no need to change the upper layer software

8. Built-in ESD protection circuit, which can effectively prevent electrostatic damage

9. Transmission distance up to 500 meters (75-5 coaxial line)

10. The maximum physical layer rate is 240Mbps

11. Low power consumption, strong anti-interference ability

Typical Application

1. Elevator network video surveillance.

2.Elevator swipe card control management system(elevator control).

3.Elevator network coverage.

4. Product equipment monitoring and management.

5.Industrial control.

Technical sheet:

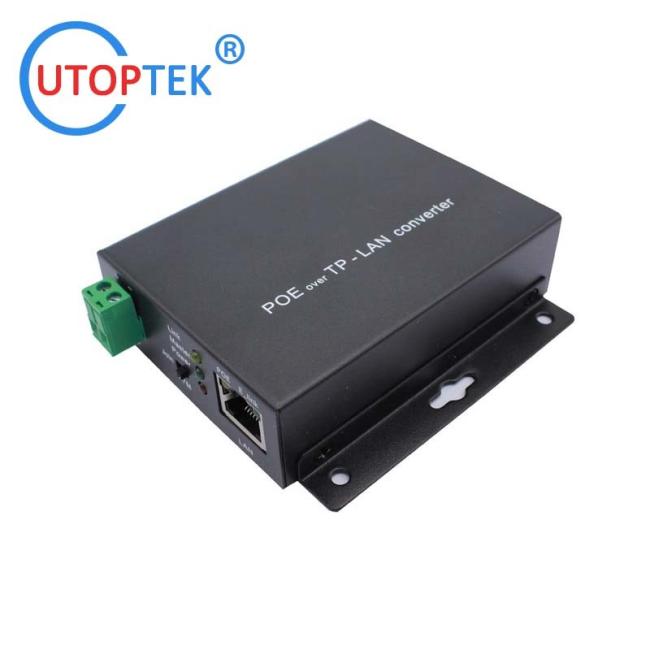

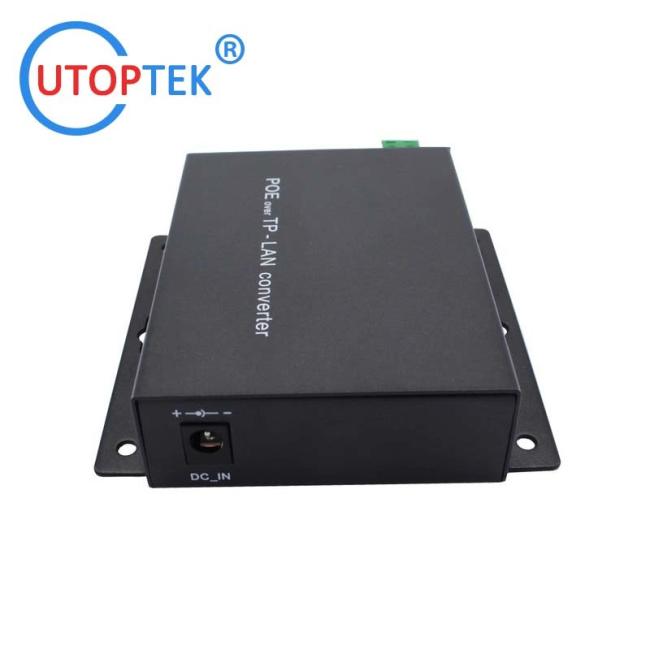

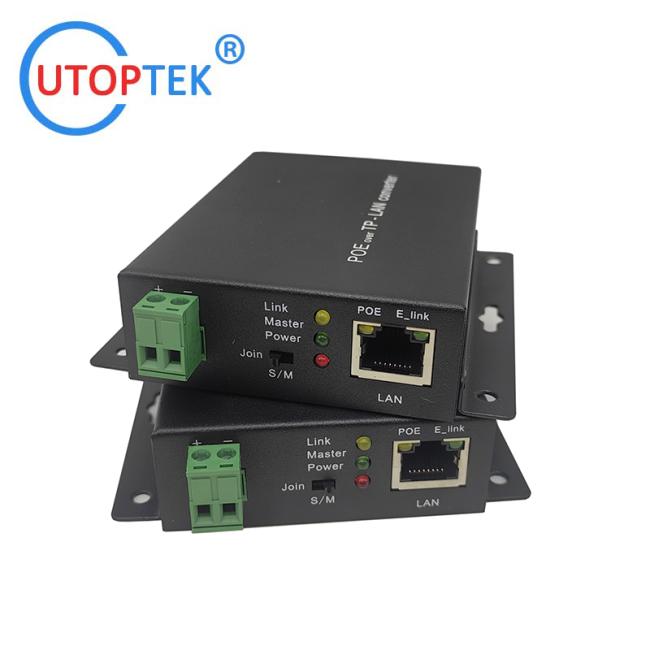

Products show:

Connection topology​:

Order Models:
