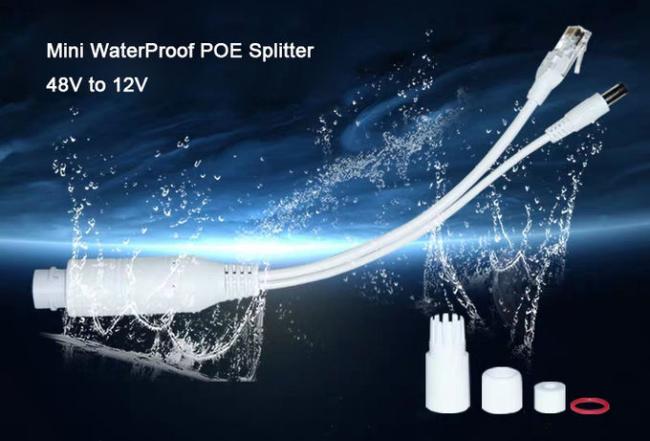

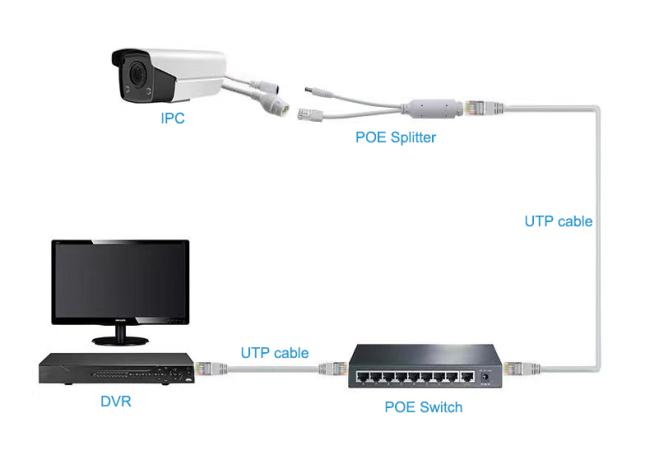

Mini Waterproof PoE Splitter 10/100M 48V to 12V for POE switch and IP Cameras
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
2-3days
Brand:
UTOPTEK
Product Description

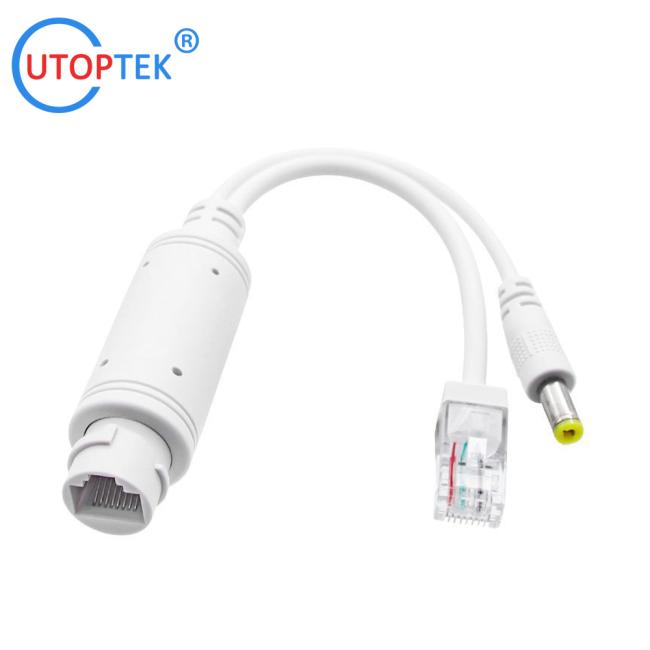

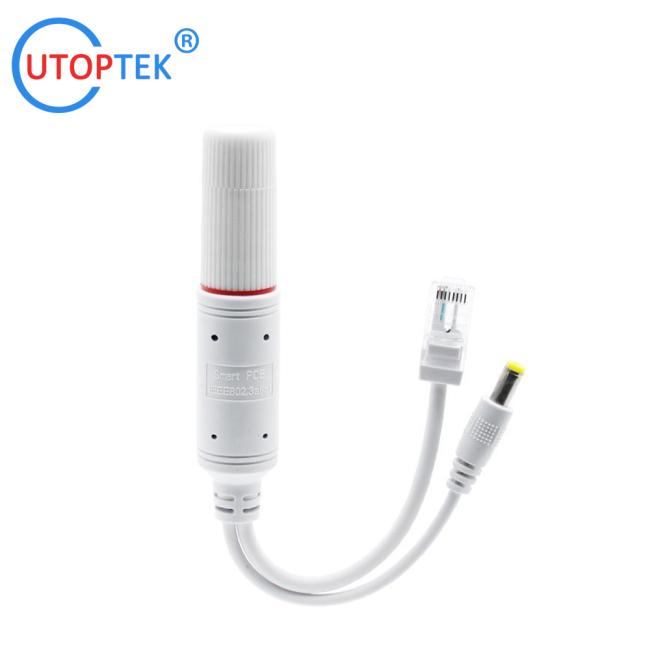

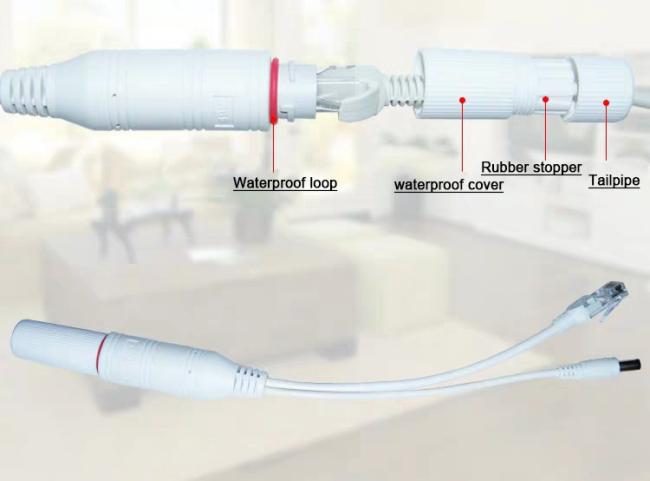

10/100Mbps 48V to 12V POE Splitter (Waterproof)
Features:
Rate:10/100Mpbs
DC(IN): 48-55V
DC(OUT): 12V ≤1.1A
Data signal port:1236
Pins (power+data):1/2+ 3/6- 4/5+ 7/8-
Distance: 150Meters

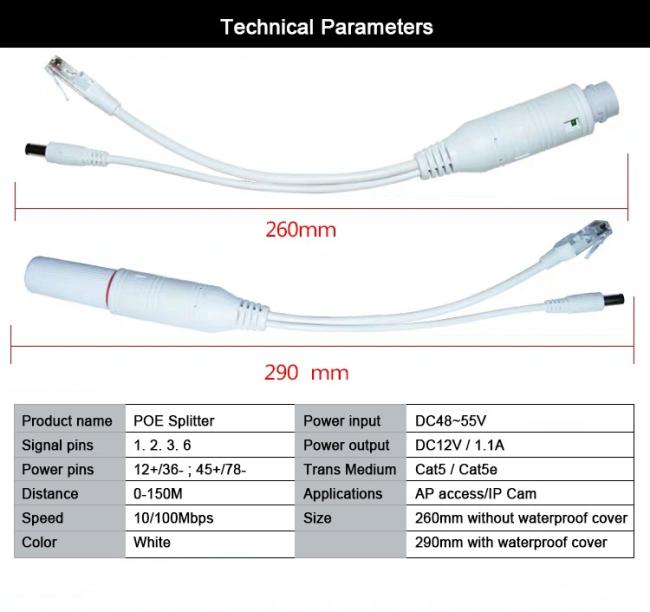

Technicals
| Item | Description | |
| PoE Power Supply | Protocol | IEEE803.2af / IEEE803.2at |
| Power Supply | Compatible Mode A (End-Span) and Mode B (Mid-Span) | |
| Power Consumption | ≤15.4W | |
| Input Voltage | PoE 40V-57V | |
| Output Voltage | DC 12V | |
| current output | 2A (max.) | |
| Output Ripple | <5% | |
| Ethernet Port | Ethernet Port | 1×RJ45 Input |
| Transmission Speed | 10/100Mbps | |
| Transmission Medium | Cat5/5e/6 Standard Network Cable | |
| Transmission Distance | 100m (Maximum) | |
| Protection | ESD | 1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2 |

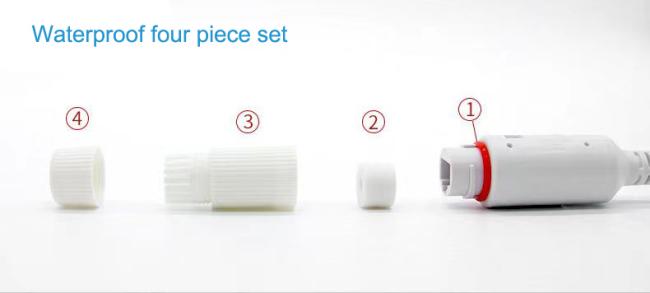

| Waterproof function | Support | |
| Lightning Protection | Power: 2KV Signal: 1KV Per: IEC61000-4-5 |
|
| Environmental | Working Temperature | -20℃~60℃ |
| Storage Temperature | -40℃~85℃ | |
| Humidity (non-condensing) | 0~95% | |
| Color | White | |
| Weight | 123g |
Ordering informations:
| Model | Description |
| UT-PS4812 | 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV |
| UT-PS4805 | 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812G | 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4805G | 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812W | White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af |
| UT-PS4805-USB | Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-USB | Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805-TypeC | Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-TypeC | Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS2412W | White Waterproof 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS2412 | Black color, 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS4824 | Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV |
