100M or 1000M POE 48V to 5V Micro USB output Isolated PoE Splitter IEEE802.3af/at for CCTV APs
Micro-USB PoE splitter, input POE 48V to output Micro USB 5V/2.4A, IEEE802.3af/at
Description:
This is a POE ethernet & power splitter device which is based on IEEE802.3 af/at, it can work with POE power supply device (such as POE switch) which meet the IEEE802.3af/at standard and provide the network and power for the device which can not support POE. This product is widely used in security surveillance and network engineer.
Features
1. Protection: Excellent circuit isolation protection, effectively improve product's lightning, ESD and anti-interference ability;
2. Power Supply: Compatible with mode A (End-Span) and mode B(Mid-Span);
3. Standard: IEEE 802.3i 10BASE-T;·IEEE 802.3u 100BASE-TX;IEEE 802.3x Flow Control;IEEE 802.3af Power over Ethernet;IEEE 802.3at Power over Ethernet

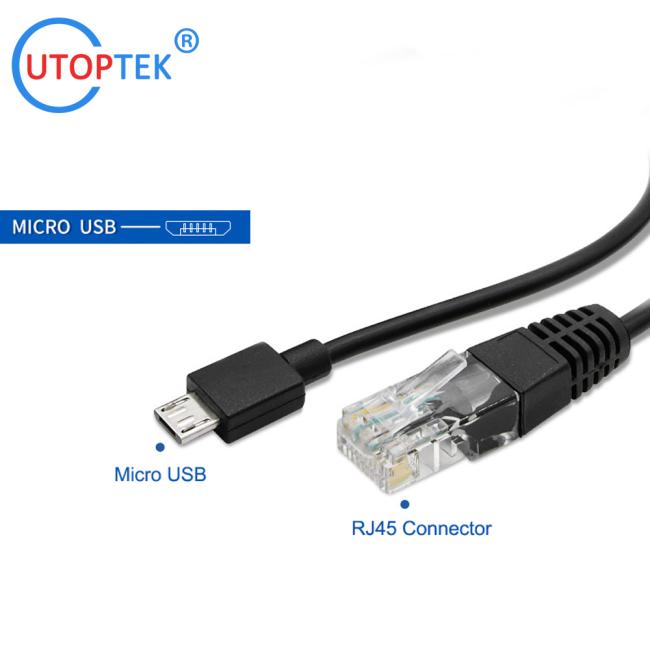

4. POE input: RJ45 port, Power Output: DC5V with Micro-USB port, Data output: RJ45.
5. Appearance and Structure: Compact size, easily install.
6. Operation: Plug and play, no need settings.
Technical Parameter:
| Item | Description | |
| PoE Power Supply | Protocol | IEEE803.2af/at |
| Power Supply | Compatible Mode A (End-Span) and Mode B (Mid-Span) | |
| Power Consumption | ≤12W | |
| Input Voltage | PoE 36V-57V | |
| Output Voltage | DC 5V Micro USB | |
| Output Ripple | <5% | |
| Ethernet Port | Ethernet Port | 1×RJ45 Input |
| Transmission Speed | 10/100M or 1000Mbps optional | |
| Transmission Medium | Cat5/5e/6 Standard Network Cable | |
| Transmission Distance | 100m (Maximum) | |
| LED Status Indicator | Input PoE Power Indicator | 1 (POE IN Port RJ45 Yellow Light) |
| Output DC Power Indicator | 1 (Ethernet Port RJ45 Yellow Light) | |
| Protection | ESD | 1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2 |
| Lightning Protection | Power: 2KV Signal: 1KV Per: IEC61000-4-5 |
|
| Environmental | Working Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ | |
| Humidity (non-condensing) | 0~95% | |
| Mechanical | Dimension (L×W×H) | 82mm×61mm×25mm |
| Material | Aluminum | |
| Color | Black | |
| Weight | 123g | |
| Stability | MTBF | >30000h |

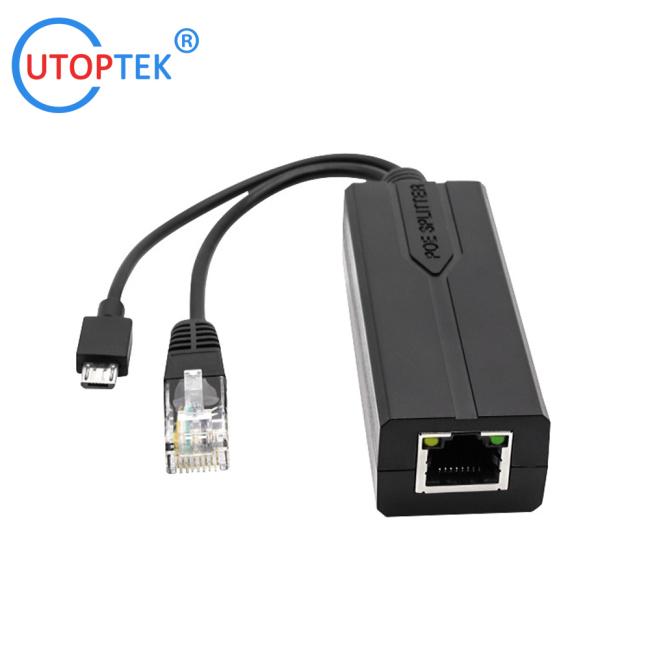

Product Images:
Odering Models:
| Model | Description |
| UT-PS4812 | 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV |
| UT-PS4805 | 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812G | 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4805G | 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV |
| UT-PS4812W | White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af |
| UT-PS4805-USB | Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-USB | Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805-TypeC | Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS4805G-TypeC | Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af |
| UT-PS2412W | White Waterproof 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS2412 | Black color, 10/100M PoE splitter, 24V to 12V/1A |
| UT-PS4824 | Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV |
