High performance 10G SFP+ to RJ45 fiber optical media converter for CCTV network
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
1-2 days
Brand:
UTOPTEK
Product Description
10G SFP+ Fiber media converter
Product details:
Features:
◆Support Jumbo Frame
◆Transparent Transport and very low delay
◆Connection between fiber to copper for 10G Ethernet equipment
◆Can be applied in Telecommunication room, R&D laboratory, Data center, etc
◆Support ITUT prescribed DWDM/CWDM wavelength
◆Support hot plugging
◆Full State Led display
◆Easy installation
Technical parameters:
| Ethernet port | RJ45 |
| Optical port | SFP+ Slots |
| Protocols | 1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T |
| 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R | |
| Media Supported | 1000Base-T: Cat5 UTP/STP. MAX 100m; |
| 2.5GBase-T: Cat5e UTP/STP. MAX 50m; | |
| 5GBase-T: Cat5e UTP/STP. MAX 50m; | |
| 10G Base-T: Cat6a UTP/STP. MAX 50m; | |
| Cable | UTP cable: Cat 6a (the max distance up to 100m) Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m) singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km) |
| Work Mode | 1000Base-T to 1000Base-X |
| 2.5GBase-T to 2500Base-X | |
| 5Gbase-T to 5GBase-R | |
| 10Gbase-T to 10GBase-R | |
| Power Supply | AC 220V(170-260V) 50Hz; 5-12V DC, 3A |
| Power consumption | Max. 5W |
| Operation Temperature | 0℃ to 55℃ |
| Storage temperature | -20 ～ +70℃ |
| Relative Humidity | 5% ～ 90% |
| Dimensions | External Power: 30 (high) x 100 (width) x140 (length) mm |

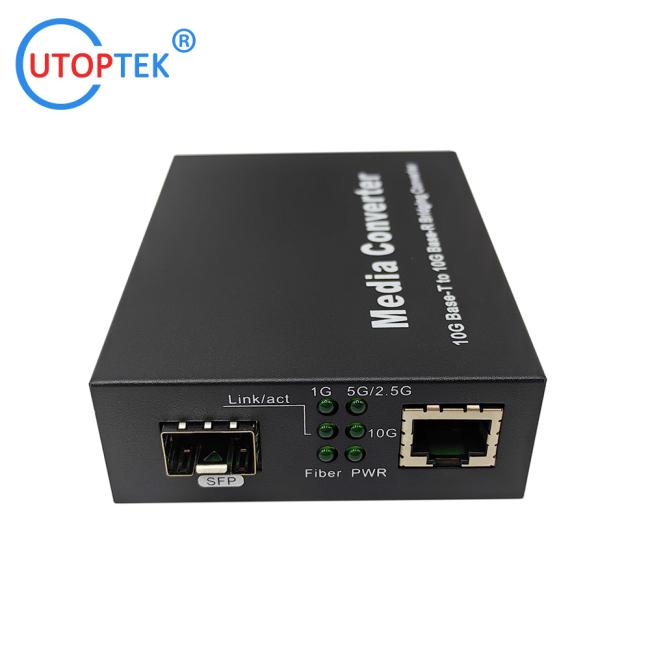

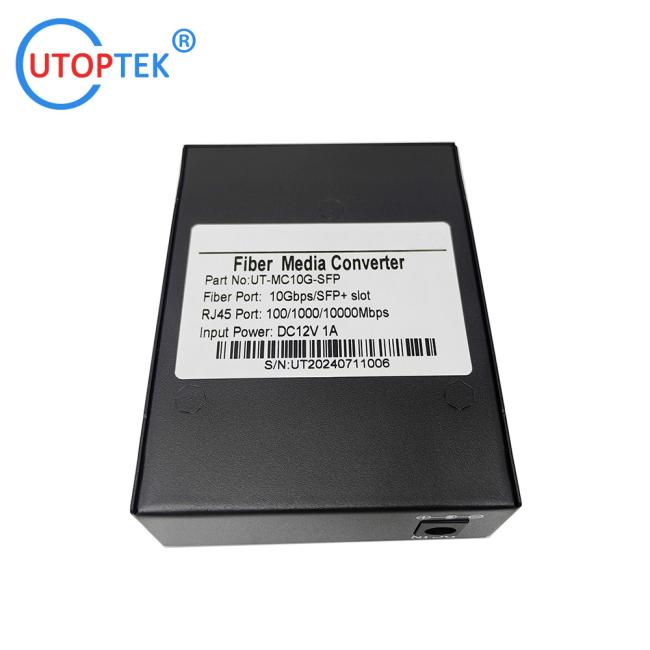

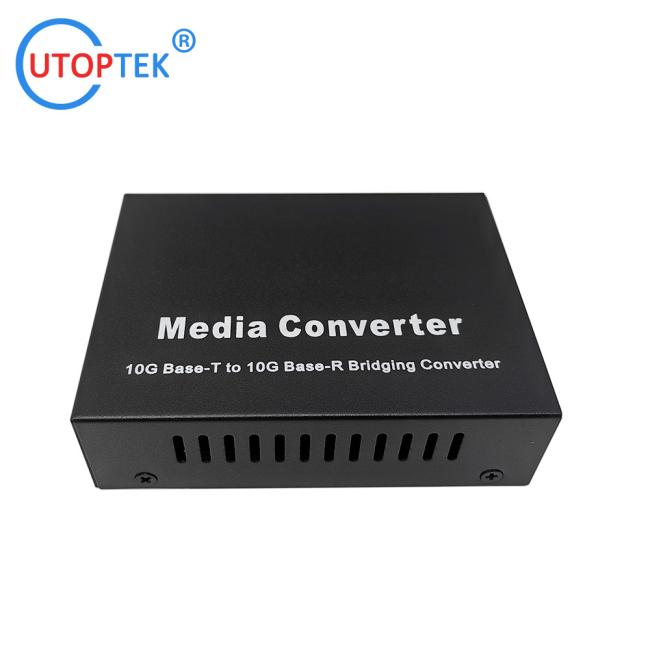

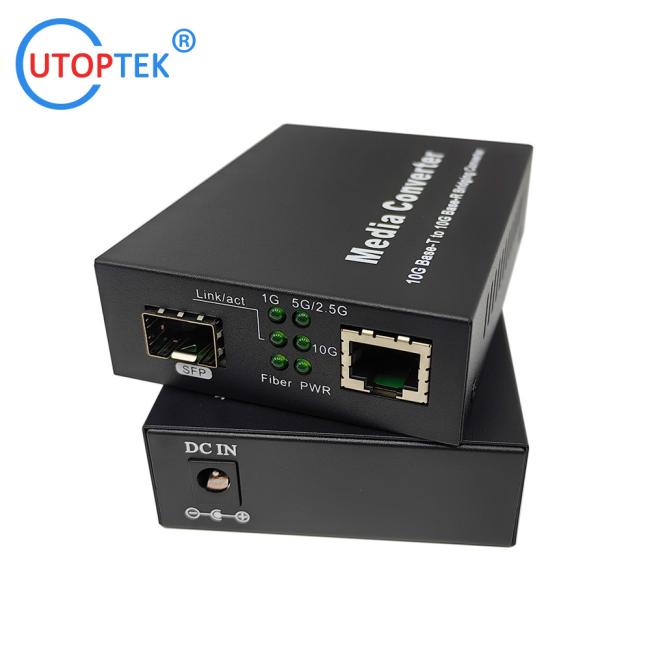

Pictures show:

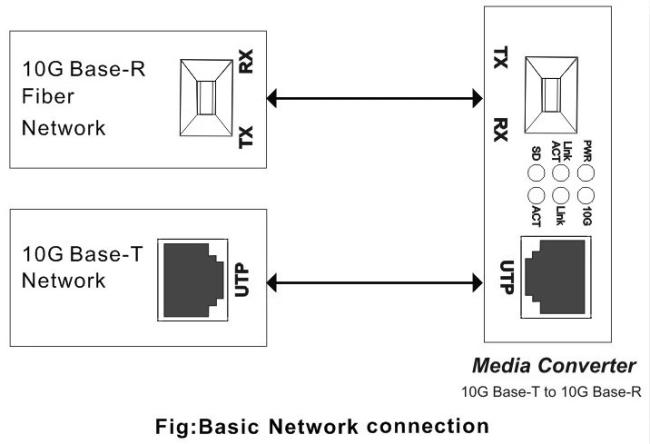

Applications:
Ordering Models:
| UT-MC2101-SX | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC2101-S20 | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC2101-S20A | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC2101-S20B | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC2101-SFP | 10/100M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC3101-SX | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC3101-S20 | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC3101-S20A | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC3101-S20B | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC3101-SFP | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC1G-2SFP | 10/100/1000M SM to MM media converter, 2*SFP port, External DC5V power supply |
| UT-MC1G-2SC | 10/100/1000M SM to MM media converter, SM duplex SC 1310nmkm to MM duplex SC 850nm 550m, External DC5V power supply |
| UT-RACK-14-2U | 19'' 2U 14slot Rack mount Chassis , for Standalone media converters,with dual power supply |
| UT-MC2.5G-SFP | 2.5G media converter, 1*RJ45+1*2.5G SFP port, External DC5~12V power supply |
| UT-MC10G-SFP | 10G media converter, 1*RJ45+1*SFP port, External DC12V power supply |
| UT-MC10G-2SFP+ | 10G OEO converter, 2*SFP+ port, External DC12V power supply |
