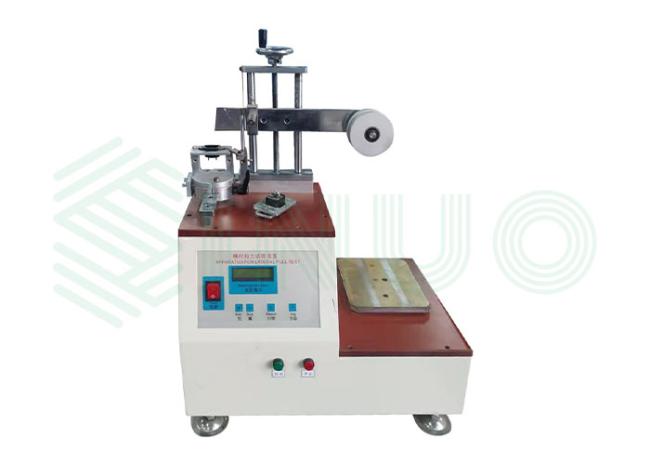

Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1
Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1
Standards For Coupler Pulling Test Apparatus:
IEC60320-1:2021 "Appliances couplers for household and similar general purposes- Part1:General requirements" clause 23.3 and figure 19.
Test principle For Coupler Pulling Test Apparatus:
The connector is inserted into an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet, a spring force mechanism is used to apply lateral force to it.
Technical parameters For Coupler Pulling Test Apparatus:
| Test station | Single station |
| Flexible cable bending height | 40±2 mm,adjustable |
| Power supply | AC 220V, ±50Hz |
| Working temperature | 5-35℃ |
| Humidity | 30%-90% |
| Pull force range | 0-100N |
| Pulling method | 50 times in one direction and then 50 times in the opposite direction |
| Cable selection and corresponding pull value table |  |
| Appliance input socket | Optional gauge according to requirements |
Structure For Coupler Pulling Test Apparatus:
The connector test should be equipped with an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet.
