IEC 60320-1 Coupler Heating Test Apparatus For Heating Resistance In Hot Conditions
IEC 60320-1 Coupler Heating Test Apparatus For Heating Resistance In Hot Conditions
Standards For Coupler Heating Test Apparatus:
IEC60320-1:2021 "Appliances couplers for household and similar general purposes- Part1:General requirements" clause 18.2 and figure 13.
Technical Parameters For Coupler Heating Test Apparatus:
| Test station | Single |
| Control method | Electrical |
| Heating method | Electrical heating, RT+10~160℃±2℃, can be preset |
| Test contents | 10A heat-resistant appliance input socket: test 10A connector, test temperature 120°±2° |
| 10A severe heat-resistant appliance input socket: test 10A connector, test temperature 155°±2° | |
| 16A severe heat-resistant appliance input socket: test 16A connector, test temperature 155°±2° | |
| Test duration | 0-99 hours and 59 minutes can be preset |
| Center distance of coupler | Arranged uniformly in a circle of Φ175mm |
| Standard gauge | Standard 10A heat resistance, 10A server heat resistance and 16A server heat resistance are heating gauges |
Use Environment For Coupler Heating Test Apparatus:
Power supply:AC220V±10%/50-60Hz,working temperature:5-35℃ humidity:30%-90%
Applicacion For Coupler Heating Test Apparatus:
It is used to check the heat resistance of coupler in hot conditions and severe hot conditions. This device is built-in temperature control, precise digital display and durable.

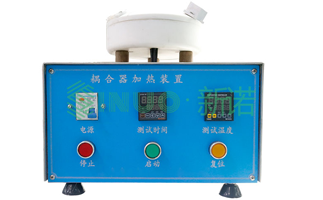

Structure For Coupler Heating Test Apparatus:
The device consists of control cabinet, mounting plate, heating device, appliance input socket (standard 10 A heat resistance ,10 A server heat resistance and 16 A server heat resistance) composition.
