IEC 60065 2014 Strain Relief Test Apparatus For Plug Torque Force Test
IEC 60065: 2014 Strain Relief Test Apparatus For Plug Torque Force Test

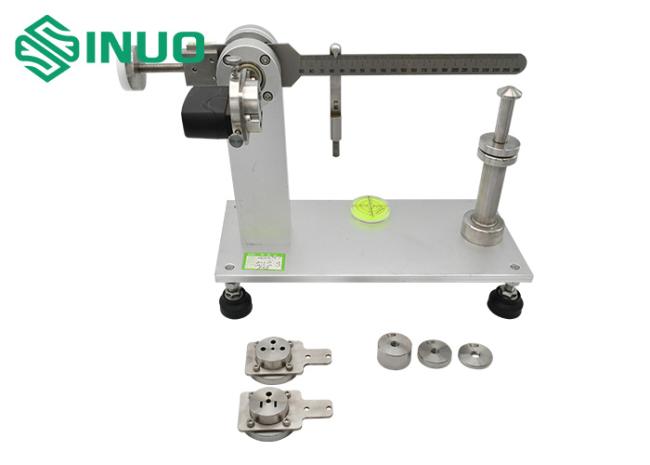

Product Information for Strain Relief Test Apparatus:
This apparatus conforms to IEC 60335-1 clause 22.3, IEC60065:2014 clause 15.4.1 and figure 11, IEC 60884-1 2013 clause 14.23.2, IEC60065 clause 15.4.1 and figure 11, etc.
This device is used to check the torque applied to the output socket after the device with the plug inserted into the fixed output socket is inserted into the output socket.
The device has good sensitivity, convenient adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixtures, strong practicability.
Technical Parameters for Strain Relief Test Apparatus:
| Test Station | Single |
| Specimen Eccentricity | Distance from the contact surface and the Axis of the surface:8mm |
| Balancing Arm | L:50-260mm |

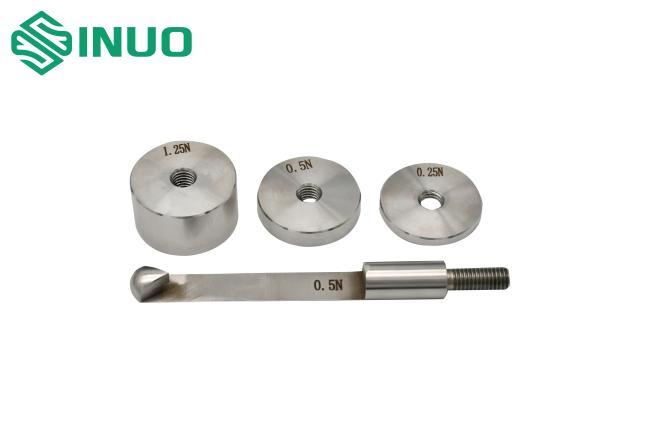

| Weight | 2.5N, can achieve 0.25Nm to 0.4Nm torque force |
| Torque Calculation Method | G×L(such as 0.25N.m,use 2.5N weights and 100 mm arm) |

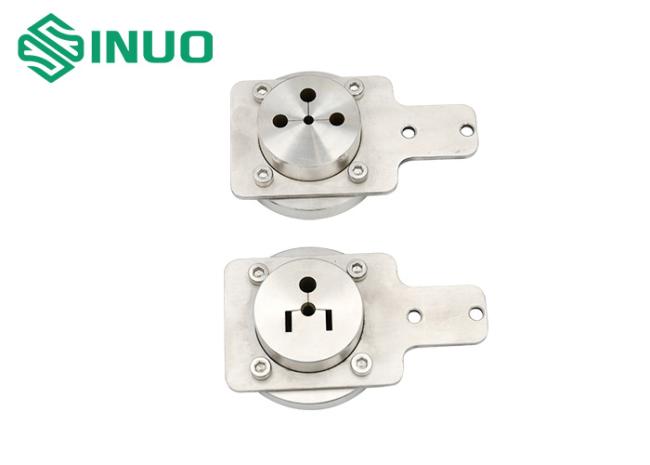

| Configure | One of each universal socket (suit for GB and BS plug), UL socket, European socket |
