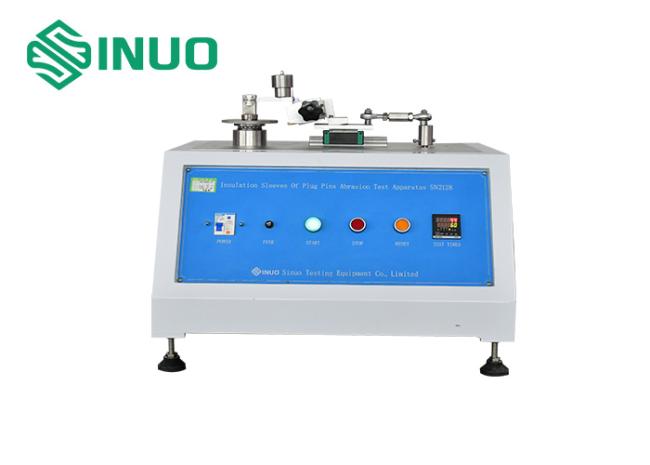

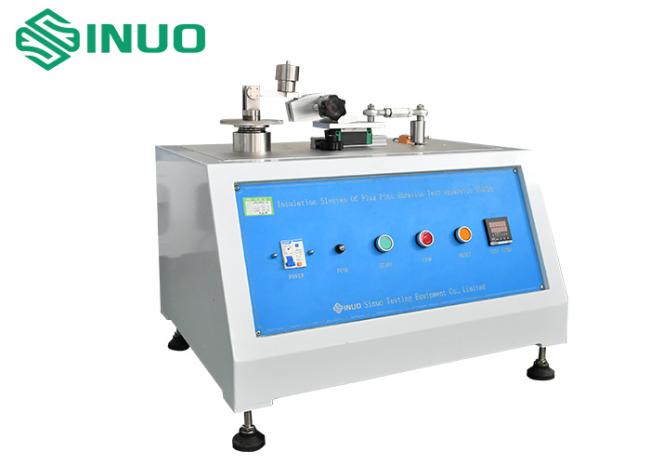

IEC 60884 Clause 24.7 One Station Plugs Insulation Sleeve Wear Resistance Testing Equipment
IEC 60884 Plugs Insulation Sleeve Wear Resistance Testing Equipment
Standards:
IEC 60884-1:2006 "ThePlugs and sockets for household and similar purposes. Part 1: General requirements" Article 24.7 and Figure 28.
BS 1363-1-2012 "The13A plugs, sockets, adapters and connecting units - Part 1: Specification for rewired and non-rewired 13A plugs
Performance:
The scraping frequency of this test device is 30 times per minute, and the return and return are recorded as one time each. The number of tests can be up to 0 ~ 999999 times, and the number of tests can be adjusted and set. The working stroke is 9mm, and the insulating sleeve is scraped out 7mm. Pressure load of 4 N, scraper wire diameter of 1 mm, effective length of 6 mm
Structure:
It consists of a horizontal beam and a linearly moving fixture base. The end of the beam is equipped with a U-shaped head with a diameter of 1 mm short steel wire bent (the two points of the U-shaped head are fixed vertically on the beam). The U-shaped bottom edge of steel wire is 6mm straight working position. The 6mm straight bottom edge of U-shaped steel wire is pressed on the insulating sleeve of the bolt, and the motor drives the clamp seat with the bolt to reciprocate, so as to test the friction between the steel wire and the bolt insulation sample.
Sample range, use, principle, structure and use environment:
|
Samples and Restrictions |
Insulation sheath for plug pin |
|
Test purposes |
It is suitable for testing the wear resistance of insulation sleeve of plug pin |
|
The test principle of |
Using motor drive eccentric mechanism to achieve the reciprocating scraping of the latch jacket |
|
Equipment structure and characteristics |
It consists of a horizontal beam and a linearly moving fixture base. The end of the beam is equipped with a U-shaped head with a diameter of 1 mm short steel wire bent (the two points of the U-shaped head are fixed vertically on the beam). Steel wire U bottom line for 6mm straight working position. The 6 mm straight bottom edge of the u - shaped steel wire is pressed on the insulating sleeve of the bolt, and the motor drives the clamp seat to reciprocate with the bolt, so as to test the friction between the steel wire and the bolt insulation sample. Equipment size: width × depth × height about 600 × 600 × 500 (mm), equipment weight: 70kg. |
|
Using the environment |
Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃ humidity 30%-90%; |
