IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
Product Information:

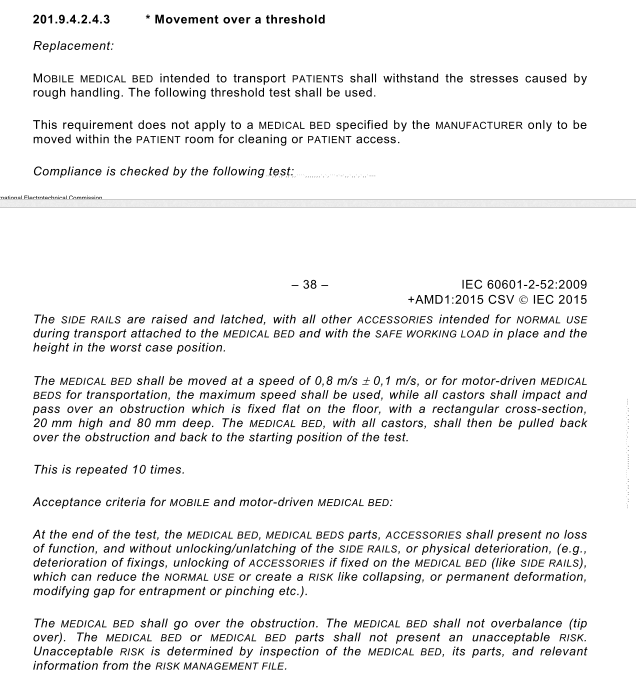

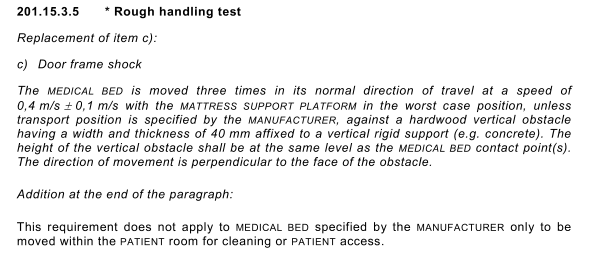

1. Standard: conform to IEC60601-1:2012, YY9706.252-2021 clause 201.9.4.2.4.3 and 201.15.3.5, IEC60601-2-52:2015.

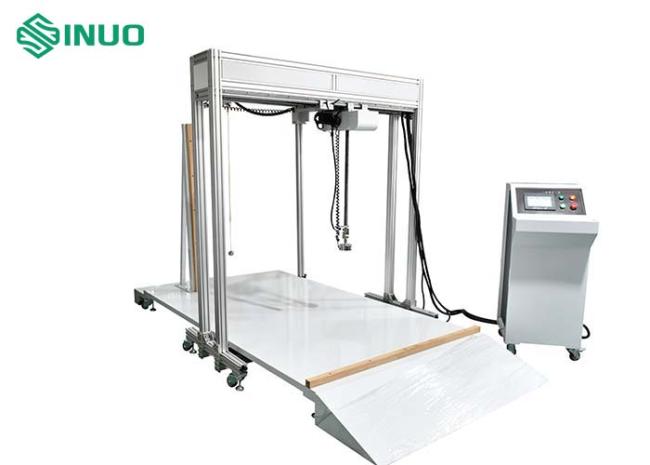

2. Samples and restrictions: Mobile ME equipment or moving parts of ME equipment.
3. Application: Whether the stress generated by mobile ME equipment or moving parts of ME equipment when subjected to rough handling and movement will cause unacceptable risks to the equipment, its mechanical strength shall be assessed. It is also used for the balance verification test of mobile ME equipment weighing more than 45kg crossing the door frame to test its stability.
4. Test principle: The motor-driven manipulator pushes the sample on the horizontal platform at a speed of 0.8m/s±0.1m/s to carry out the upper step impact test, lower step impact test, door frame impact test, and threshold crossing test.

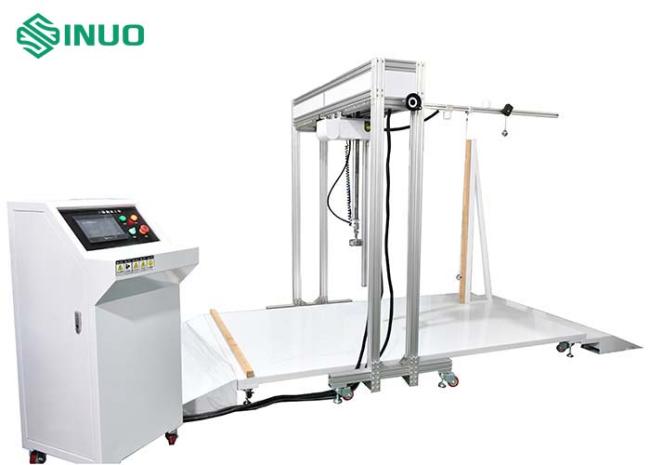

5. Equipment structure and characteristics: The device includes an extended work surface (track), with a 40mm high step and a 40mm threshold (switching installation) arranged in the middle of the table, and a 40mm wide hardwood at the end; including a servo motor, reducer, and guide rail drive mechanism.
Technical Specifications:
| Equipment dimensions | About: 4000×1300×1850 (mm) W×D×H |
| equipment weight | 350kg |
| Usage environment | Power supply: AC220V±10%/50-60Hz, power 0.75KW |
| Station | Single station, can be customized |
| Electrical control method | PLC intelligent integrated control, color human-machine touch interface operation |
| Test size range | The length is not more than 150cm, the width is not more than 100cm (the distance between casters is not more than 80cm), and the height is not more than 150cm |
| Drive mode | Servo motor + precision reducer drive |
| Specimen clamping method | Mechanical clamping |
| Test items and action processes | 1. Impact test on steps: move from left to right and impact the middle obstacle |
| Linear stroke | 0-3600mm, can be preset |
| Test speed | 0-0.85m/s can be preset, can be preset (0.8±0.1m/s) |
| Test frequency | 0~999999 times, can be preset |
| On step Impact test obstacle | 40mm step, located in the middle of the platform, width 1000m |
| Down step impact test obstacle | |
| Threshold | WDH=1000*80*10mm, fixed with 40mm step, switchable with 40mm step |
| Door frame impact test barrier | WDH=40mm×40mm×1500mm, located at the right end |
| Safety protection | Add guardrails around |
