IEC 60884-1 Clause 24.3 Tumbling Barrel Free Fall Test Apparatus Drop Height 500mm
IEC 60884-1 Clause 24.3 Tumbling Barrel Free Fall Test Apparatus Drop Height 500mm
Product information:
Standard: Conforms to IEC 60884-1: 2022 clause 24.3, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-32, BS1363.1, EN50075, UL60730, IEC60335-1 clause Annex B 21.101, IEC 60065:2014 clause12.3, etc.
Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Feature: This tester can preset test times, automatic stop when set test times completed.
Technical Parameters:
|
Rotate speed
|
5rpm
|
|
Drop rate
|
10time per min
|
|
Material
|
Lateral 1.5mm high quality steel plate, top and bottom 3mm steel pads, sliding surface in 10-19mm wood and beveled section plastic laminate with triangular rubber pads
|
|
Test times
|
0~999999
|
|
Drop height
|
500mm
|
|
Barrel number
|
Single
|
|
Application
|
Plug and socket and similar electrical accessories
|
|
Power supply
|
220V,50Hz |
Structure:

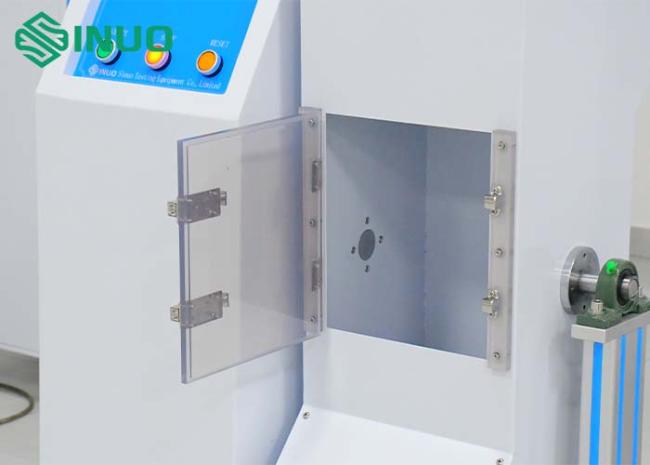

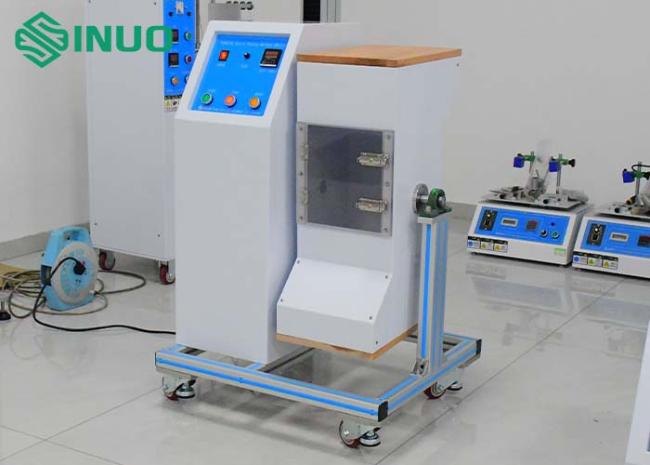

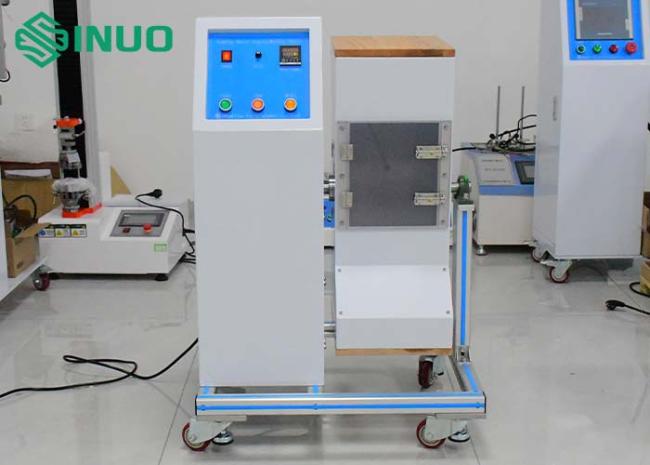

The test equipment consists of an electric control cabinet and a drum. The test time can be set in advance, and the test will stop automatically after completing the pre-set test time.
Equipment size: Approx. 800 × 800 × 1100 (mm) W × D × H
Equipment weight: 100 kg
Use Environment:
Power supply: AC220V±10%/50-60Hz or according to customer's local power requirement
Operating temperature 0-40 ° C, humidity: 30% - 90%
