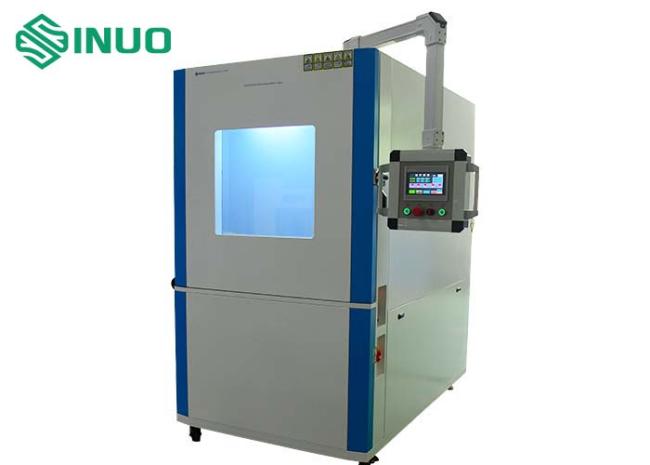

IP5X & IP6X Sand Dust Test Chamber For Enclosure Sealing Performance Test IEC 60529
IP5X & IP6X Sand Dust Test Chamber For Enclosure Sealing Performance Test IEC 60529
Product information:
The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it also has large observation window and manual wiper device. The security protection is good.
The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Function parameters:
| Model | SN441-1500L | |
| Working size(mm) | L1000*W1500*H1000 | |
| Outer size (mm) | L1610*W1750*H1950 | |
| Main technical parameters | Temperature range | Room temperature |
| Test dust | dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm. | |
| Test sand (or talc) dosage |
2kg/m³
|
|
| Vacuum pump | 0~30Kpa | |
| Air pressure | 0.5~1.0Mpa | |
| Sample rack height adjustment range |
0~750MM
|
|
|
Timing range
|
0~99 hours 59 min | |
|
Timing accuracy
|
±1min | |
|
Load cycle control
|
0~99 hours 59 min | |
|
Ash blowing cycle control
|
1s~9999 min | |
| Sand and dust concentration | 2～4kg/m3 | |
| Air flow speed | ≤2m/s | |
| Bearing Capacity | 50kgs | |
Product main configuration:
| Device Name | Dust and Sand Test Chamber | ||
|
Main configuration |
Cabinet | Enclosure material | A3 plate electrostatic spraying |
| Inner material | SUS304B Stainless steel | ||
| Lead hole | The sample can be external power supply through this hole | ||
| Observation window | large observation window in the middle of the door | ||
| Electrical control system | Controller |
PLC Control: A. blowing dust time (stop, blowing) can be adjusted B. Cycle: arbitrary adjustable C. Preset test time: 0.1H-9999.9H arbitrary adjustable D. Power: On-off- On E. There are accumulating function and power-off protection function |
|
| Vacuum system | Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe | ||
|
Security Protection Device |
Power overload, short-circuit protection | ||
| Ground Protection | |||
| Voltage Protection | |||
| Motor phase loss protection | |||
| Alarm beep prompt | |||
| Power Supply | Three phase 380V, 50Hz,3KW | ||
| Accessories |
1 pc of Sieve 5 kgs of talc 1 pc of brash 1 pair of window scraper |
||
