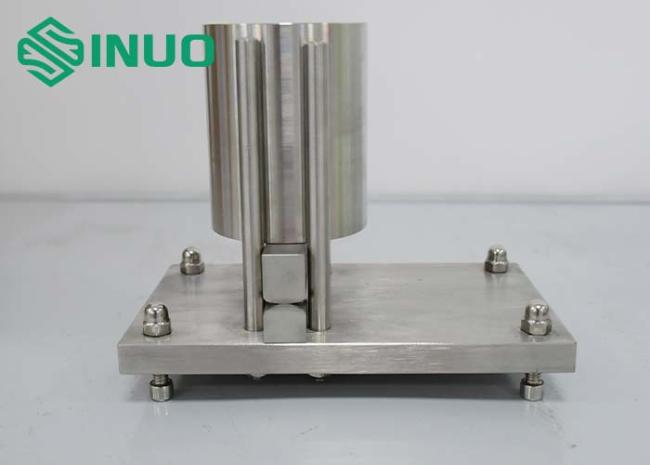

BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat
BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat
Product information:

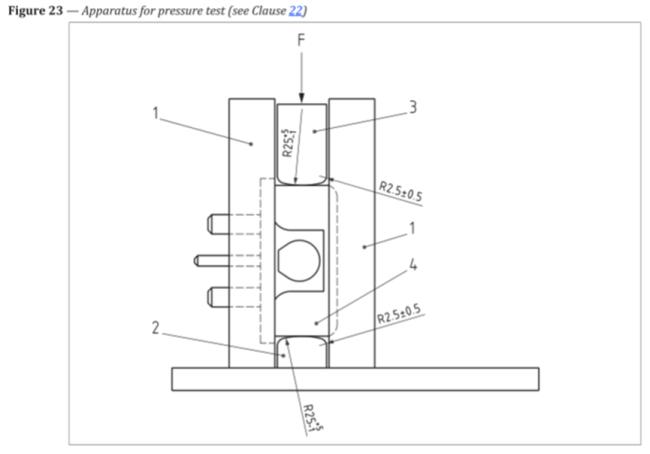

The test apparatus conforms to BS1363-1: clause 22.1.3 and figure 23, IEC 60884-1 clause 24.19, 25.4, figure 38, etc.
Technical parameters:
| Compression Weight | Having a cylindrical face of 25 mm radius, corners are rounded with a radius of 2,5 mm | ||||||||||||||||||||||||||

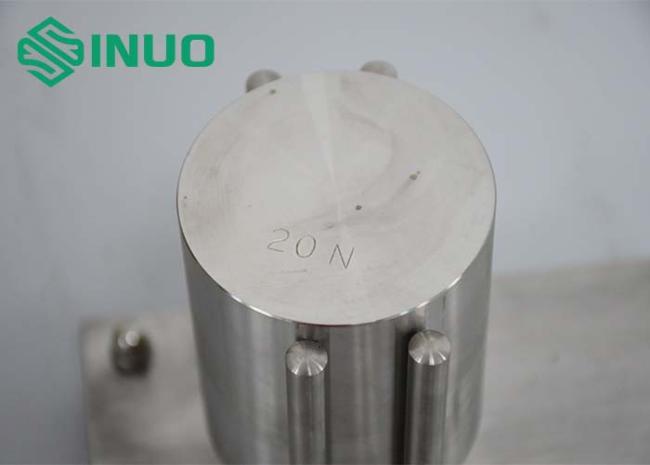

| Compression Force | 19~20 N | ||||||||||||||||||||||||||
| Test Time | 1 hour, test at temperature of (70 ± 5) °C | ||||||||||||||||||||||||||
| Oven (prepare by the client) |
|
Test method:
1. Before first use, user should familiar with the relevant standards for more effective and
proper using the test apparatus and completing the test.
2. According to the standard requirements for sample pretreatment before use.

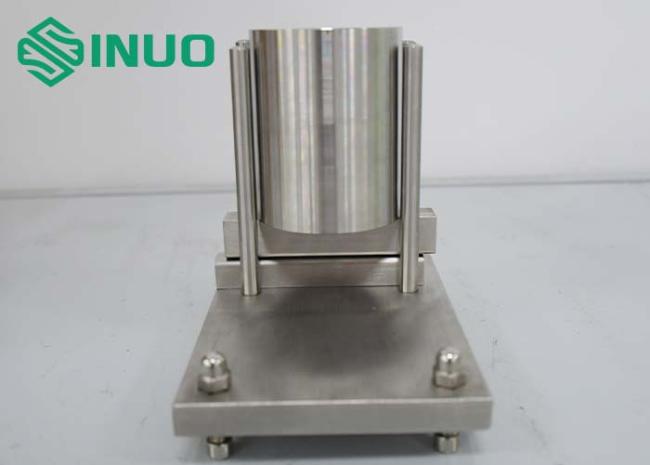

3. The pressing plate (small) is placed between the guides (narrow side), cylindrical face is upward, the specimen is placed horizontally on the pressing plate, then place the pressing plate (big) on the specimen and the cylindrical face is downward, finally put the weight on the pressing plate (big), test time is 1 hour.
