IEC 60065 Figure 11 Connection Plug Torque Test Equipment Strain Force Of Insertion Test
IEC 60065 Figure 11 Connection Plug Torque Test Equipment Strain Force of Insertion Test
Product information:
Standard: Conforms to IEC60065:2014 clause 15.4.1 and figure 11, IEC 60884-1 2013 clause 14.23.2, IEC 60335-1 clause 22.3.

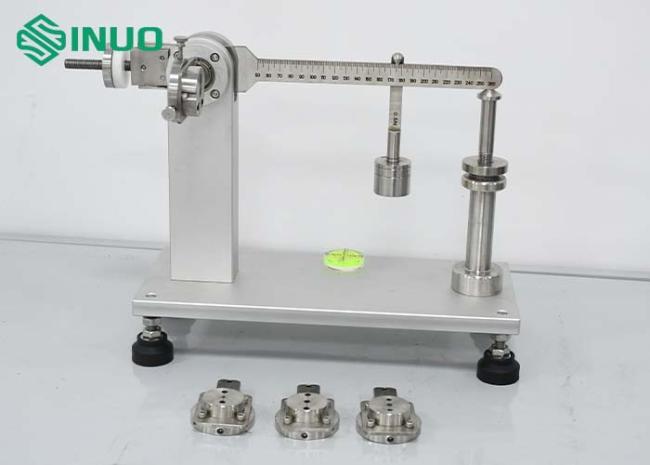

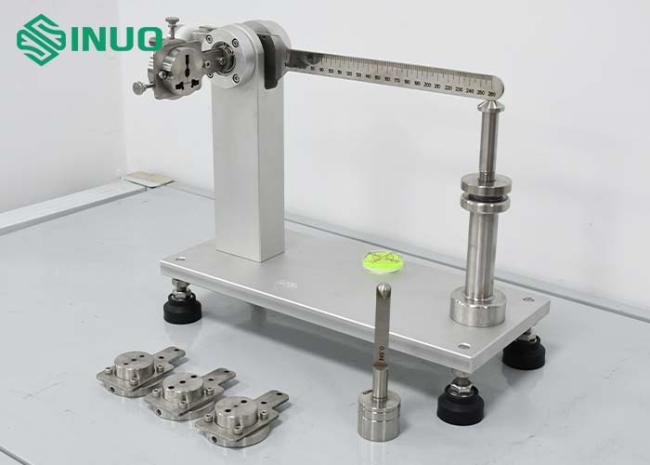

Application: This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
Test sample: fixed socket-outlet, plug-in equipment

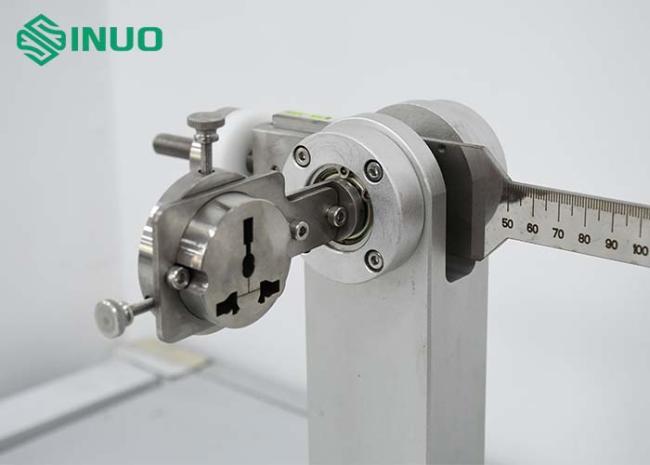

Feature: According to the standard, measuring the torque force of the plug introduce into the socket.
Technical parameters:
|
Test Station |
Single |
|
Specimen Eccentricity |
Distance from the contact surface and the Axis of the surface:8mm |
|
Balancing Arm |
L:50-260mm |
|
Weight |
2.5N, can achieve 0.25Nm to 0.4Nm torque force |
|
Torque Calculation Method |
G×L(such as 0.25N.m,use 2.5N weights and 100 mm arm) |
|
Configure |
One universal plug (applicable to GB, BS plug), Unicever plug, European standard plug |
