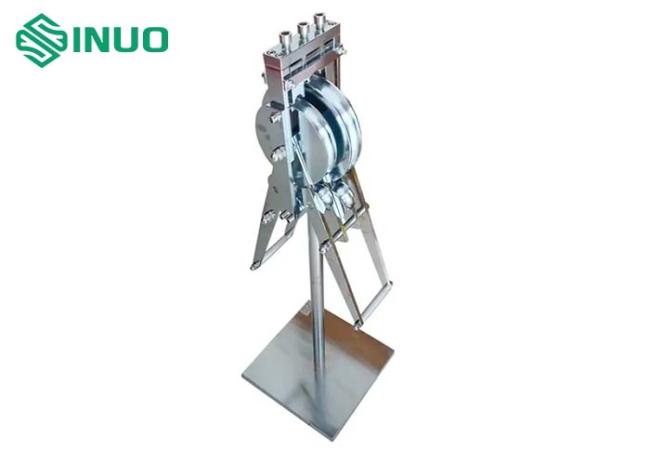

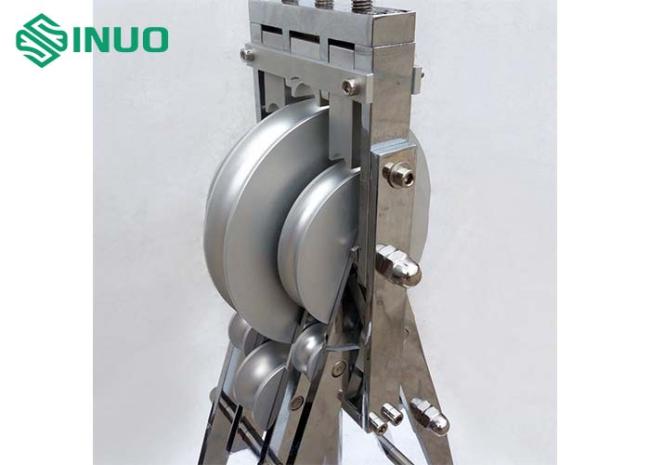

IEC 61386-21 Figure 103 Bending Apparatus For Non-Metallic And Composite Conduit
IEC 61386-21 Figure 103 Bending Apparatus For Non-Metallic And Composite Conduit
Product information:
This testing machine is suitable for bending test of metal conduits and other materials, with a bending angle of 90°. Comply with the requirements of Clause 6.6 and Figure 9 of JG3050-1998 "Insulated Electrical Bushings and Accessories for Buildings", "GB 20041.21-2008 Conduit Systems for Cable Management - Special Requirements for Rigid Conduit Systems", GB/T14823.2 "Conduits for Electrical Installation" Special requirements - Rigid insulating material flat conduit", ZBG33008 "Polyvinyl chloride plastic corrugated wire conduit" and IEC61386-21 clause 10.4.102 and Figure 103 and other requirements.
Technical parameters:
| Nominal size of conduit | Wheel lateral radius R1 | Bending wheel track radius R2 | Radius of profile wheel and curved wheel groove (R) | Curved wheel groove diameter (D) |
| 16 | 48 | 84 | 8.1 | 24 |
| 20 | 60 | 105 | 10.1 | 30 |
| 25 | 75 | 131.25 | 12.6 | 37.5 |
