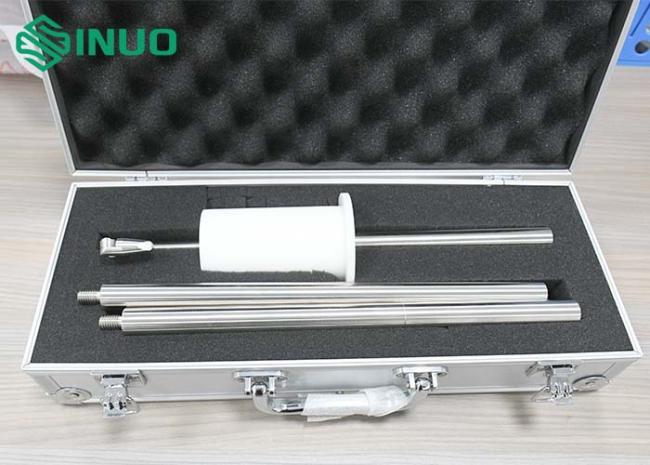

IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm
IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm
Product information:

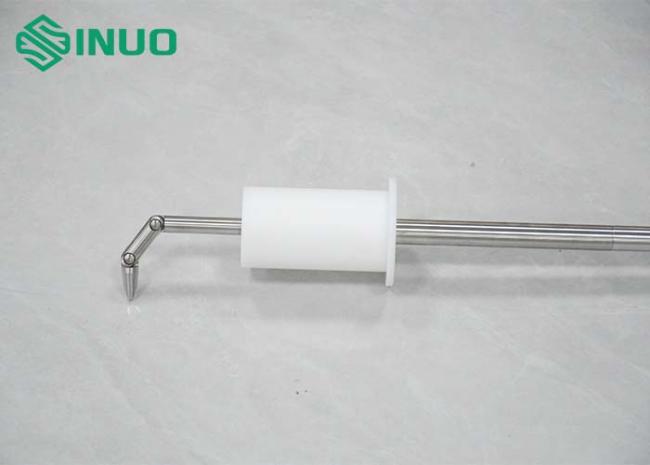

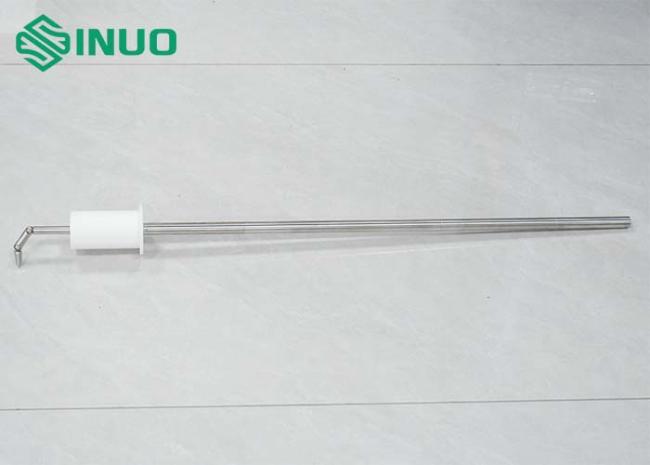

This test probe meets the requirements of IEC 60335-2-64 clause20.2, etc. Test probe similar to that of probe B of IEC 61032 but having a circular stop face with a diameter of 56mm instead of the non-circular face.
Technical parameters:
| Model | SN2210-2D |
| Name | Test Probe B |
| Joint 1 | 30±0.2 mm |
| Joint 2 | 60±0.2 mm |
| Fingertip to baffle | 120 |
| Cylindrical | R2±0.05 mm |
| Spherical | R4±0.05 mm |
| Fingertip cutting bevel angle | 37o 0 -10′ |
| Fingertip taper | 14 o 0 -10′ |
| Test finger diameter | Ф12 0 -0.05 |
| Thrust Plate diameter | Ф56 mm |
| Thrust Plate length | 730 mm |
Notice:
1. For verifying whether LIVE PARTS touched, the probe is equipped with alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:
2. Please do not damage the appliance shape (such as scratching, bending, etc.).
3. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
4. Be careful of electric shock.
