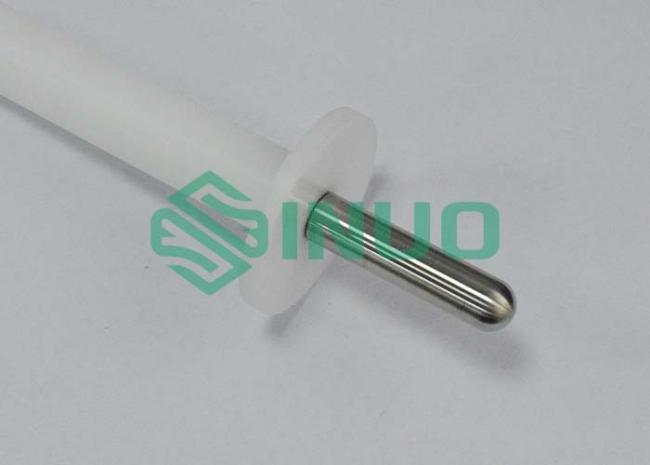

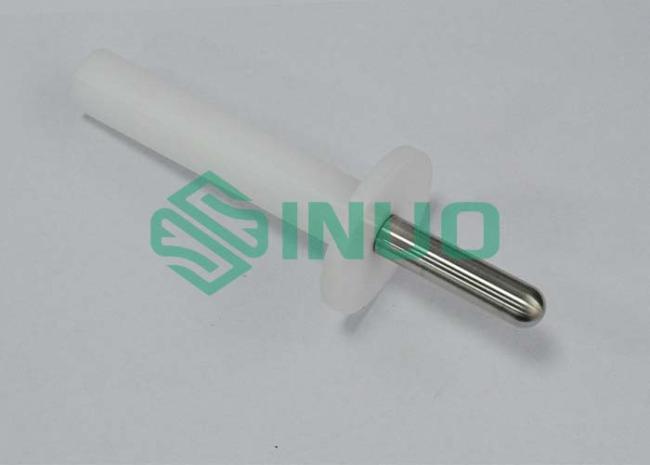

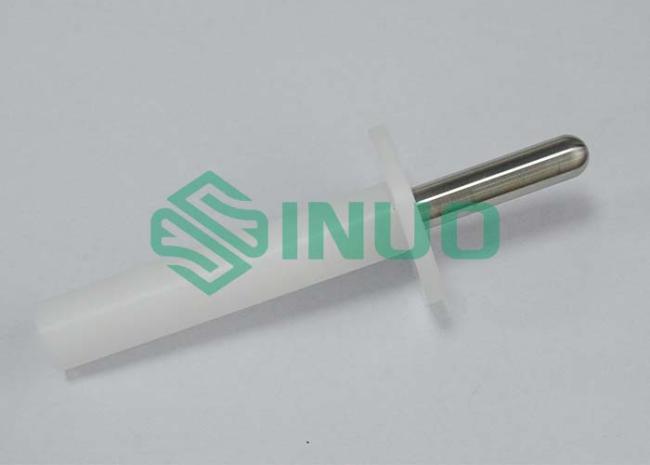

IEC 60745-2-5 Figure 105 Probe "A" With Probe Length 50mm For Circular Saws Test
IEC 60745-2-5 Figure 105 Probe "A" With Probe Length 50mm For Circular Saws Test
Product Overview:
Standard: IEC 60745-2-5: Particular requirements for circular saws, clause 19.101.2 and Figure 105
Application: This probe is applicable to verify the upper guard protection against to touch the blade.
Test sample: Circular saws

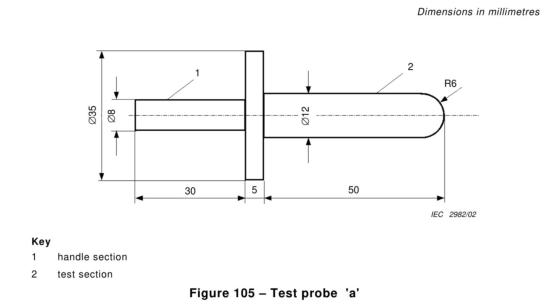

Feature: Apertures in the guarding system above the guide plate, unless otherwise specified below, shall be designed such that the test probe ‘a’ of figure 105, when inserted at any angle and to the depth allowed by its stop, shall not be able to contact the cutting edge zone of any recommended blade.
Technical Specifications:
| Probe diameter | 12mm |
| Probe length | 50mm |
| Baffle diameter | 35mm |
| Baffle thickness | 5mm |
| Handle diameter | 8mm |
| Handle length | 30mm |
