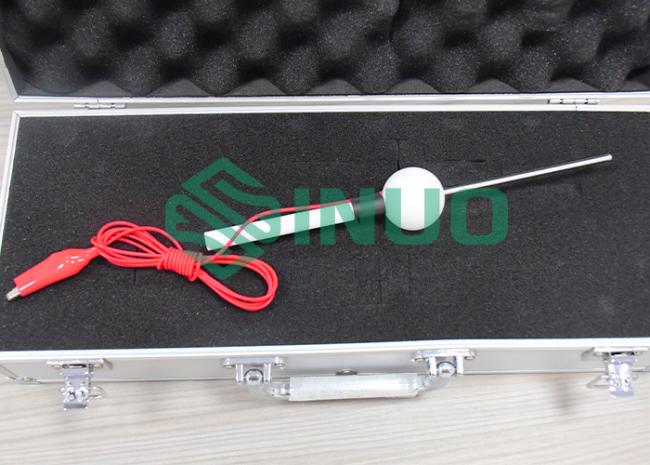

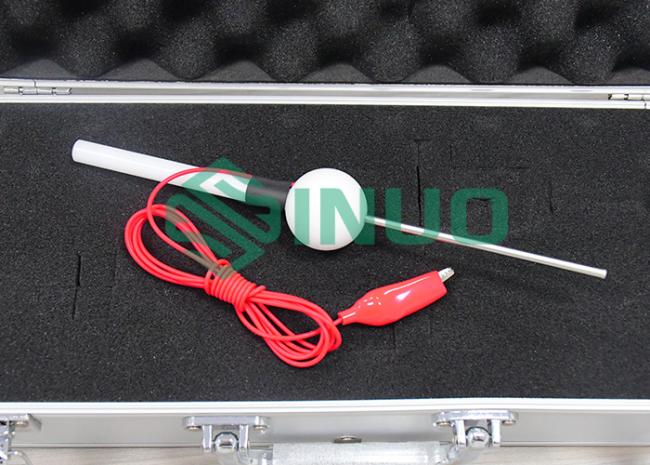

IEC 60065 Hazardous Live Parts Probe Verify The Protection Against Access to hazardous parts
IEC 60065 Hazardous Live Parts Probe Verify The Protection Against Access to hazardous parts
Product information:
Standard:IEC60065:2014 clause 9.1.3, EN61010-1, UL3101-1 and CSA 1010-1, and etc.
Application:This testing probe is used to verify the protection against access to hazardous parts through top openings.
Test sample:Audio, video and similar electronic apparatus.
Feature:It can be used for anti-electric shock test when it is equipped with amphenol connector or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical Parameters:
| Probe diameter | Ф4+0.05 0 mm |
| Sphere baffle | SФ35±0.2 mm |
| Handle diameter | Ф10 mm |
| Probe length | 100±0.2 mm |
| Handle length | 100mm |
| Standards | IEC60065:2014 clause 9.1.1.3, EN61010-1, UL3101-1 and CSA 1010-1, etc. |
Sinuohave a full range of test probes according to different standards, and also can offer customized service.
Test procedures and operation
Please refer to the relevant standards.
Take IEC 60950 clause 2.1.1.1 as an example:
This test probe is applied to openings, without appreciable force, in every possible position, except that floor-standing equipment having a mass exceeding 40 kg is not tilted.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:
Notice
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
3. Be careful of electric shock.
