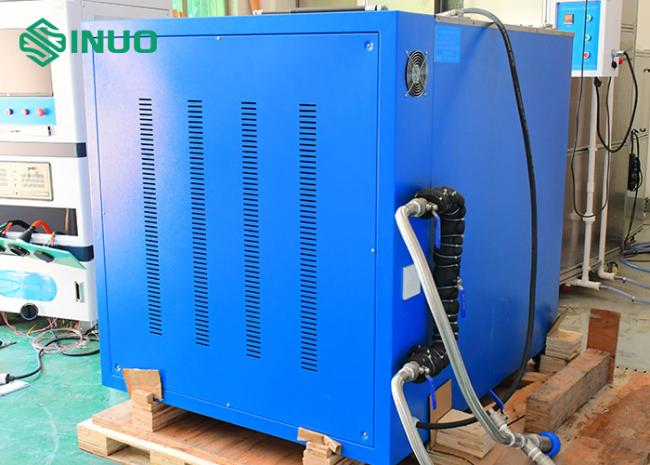

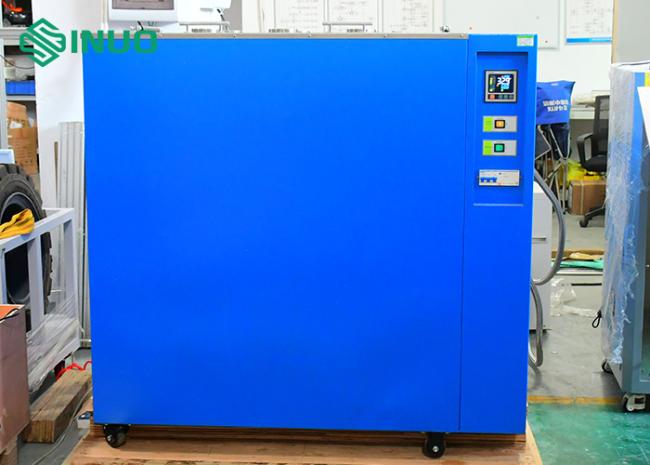

IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment
IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment
Product Information:
The Constant Water Bath is designed in compliance with IEC 62196-1:2022 clause 30, providing a stable and uniform temperature environment for testing EV plugs, connectors, and electrical components. It adopts a stainless steel inner liner and advanced digital temperature control system, ensuring precise and reliable temperature regulation. An integrated water stirring mechanism guarantees uniform temperature distribution throughout the bath.
This equipment is essential for low-voltage electrical appliance manufacturers, testing laboratories, certification institutes, and research facilities that need accurate thermal environment simulation for product verification.
Technical Parameters:
| Item | Specification |
|---|---|
| Inner Size | 1000 × 1000 × 1000 mm |
| Input Voltage | Three-phase 380V, 50/60Hz |
| Max. Power | 5 KW |
| Constant Temperature Range | Room temperature ~ 20°C |
| Heating Range | Room temperature ~ 20°C |
| Cooling Range | Room temperature ~ 20°C |
| Temperature Control | Automatic, reaches set value automatically |
| Temperature Error | ±2°C |
| Chamber Liner Material | 2 mm 304 stainless steel |

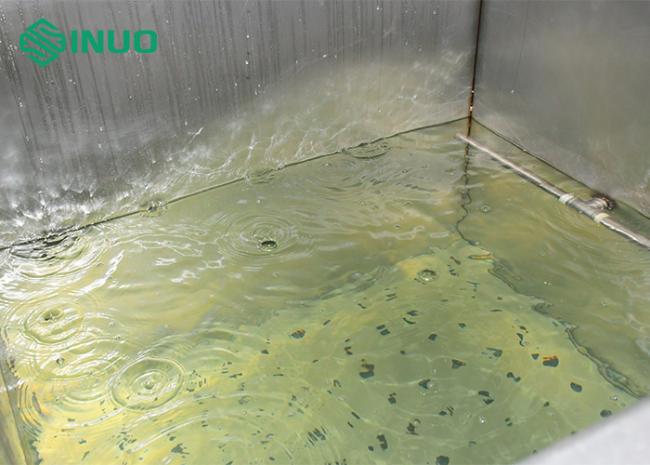

| Temperature Uniformity | Bottom water stirring for even distribution |
Key Features & Benefits:
✔ IEC 62196-1:2022 compliant for EV plug and connector testing
✔ Digital temperature control with automatic stabilization
✔ Uniform water circulation ensures even temperature distribution
✔ Durable 2mm 304 stainless steel liner for long service life
✔ High stability with ±2°C temperature error tolerance
✔ Suitable for electrical appliance testing, R&D labs, and certification institutes
Applications:
EV plug and connector reliability testing
Low-voltage electrical appliance temperature endurance tests
Laboratory research on electrical components
Certification and quality assurance testing
