Product Overview
The Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus is designed in full compliance with IEC 60335-1, Clause 22.32.
It is used to evaluate whether ceramic materials are tightly sintered and free from internal defects under high-pressure conditions when exposed to fuchsine and methylated spirit solutions.

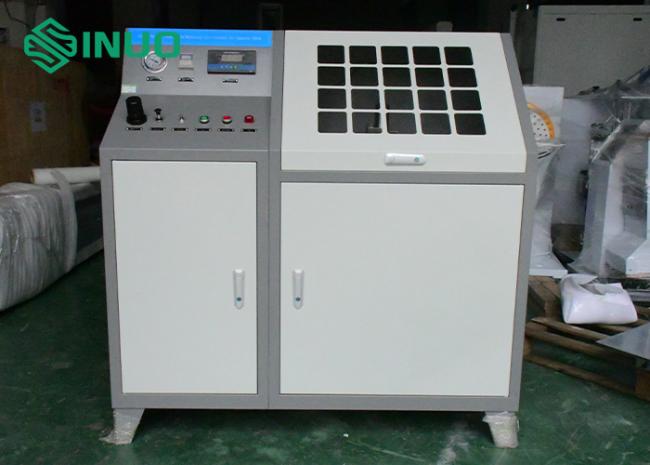

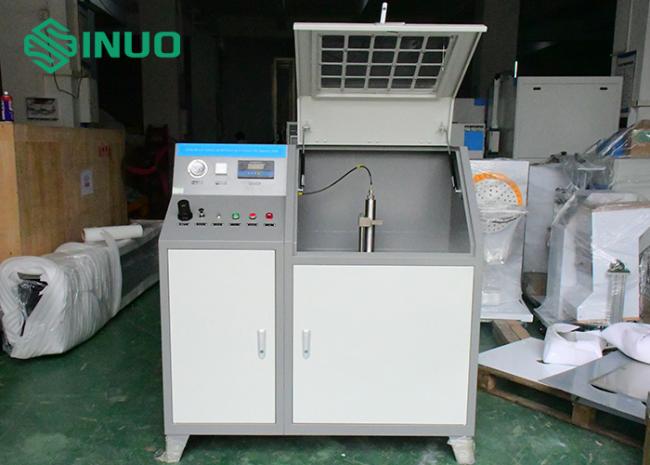

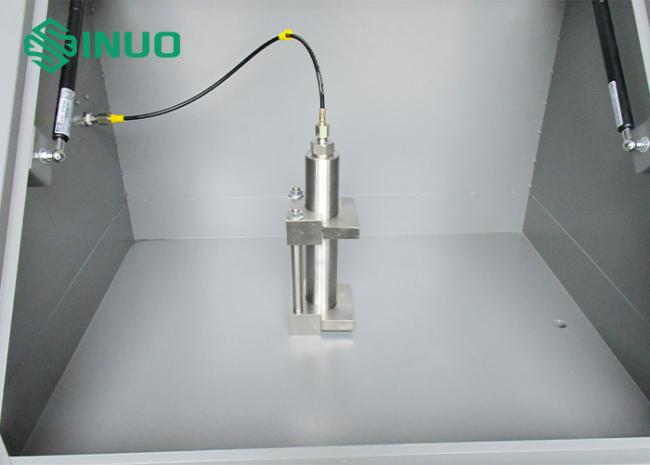

The system integrates a stainless-steel pressure vessel, manual pressurization system, and explosion-proof observation chamber, ensuring safe, stable, and efficient testing operations.
Key Features
Fully meets IEC 60335-1: Household and similar electrical appliances – Safety
Evaluates the density and sintering quality of ceramic materials
Compact design with explosion-proof window for safe monitoring
Digital pressure display for precise readings
Simple manual pressurization system for easy operation
Adjustable test pressure and hold time for flexible testing needs
Technical Parameters
| Item | Specification |
|---|---|
| Standard | IEC 60335-1 Clause 22.32 |
| Test Container Volume | >100 ml |
| Pressure Capacity | >15 MPa |
| Material | High-strength stainless steel |
| Maximum Test Pressure | 20 MPa |
| Pressure Range | 0–20 MPa ±0.5 MPa (adjustable) |
| Boost Rate | 100 KPa/s |
| Pressure Hold Time | 0–99 s (adjustable) |
| Pressurization Method | Manual pressurization |
| Display Mode | Digital display |
| Power Supply | Match client’s local voltage/frequency |
Operation Procedure
-
Fill the tank with water.
-
Place the ceramic sample into the test container.
-
Set the desired pressure value.
-
Tighten the pressure relief valve.
-
Turn on the power switch.
-
Set the test time (note: it only serves as a timer reminder).
-
Press the start switch to begin testing.
-
After completion, manually loosen the pressure relief valve to release pressure.
Applications
-
Testing the sintering compactness of ceramic insulating materials
-
Evaluation of material density and pressure resistance
-
Widely used in quality inspection labs, R&D departments, and electrical appliance testing centers
Why Choose This Equipment
-
Designed according to international safety standards (IEC 60335-1)
-
Reliable and safe operation with explosion-proof protection
-
High-precision pressure control and repeatable test results
-
Customizable power supply and test configuration to meet your regional requirements
![]()
