IEC 60335-2-41 Clause 22.101 Hydraulic Pressure Test Apparatus 0.1-2.5MPa
Price:
Customized
MOQ:
1
Delivery Time:
30 business days
Brand:
Sinuo
Product Description

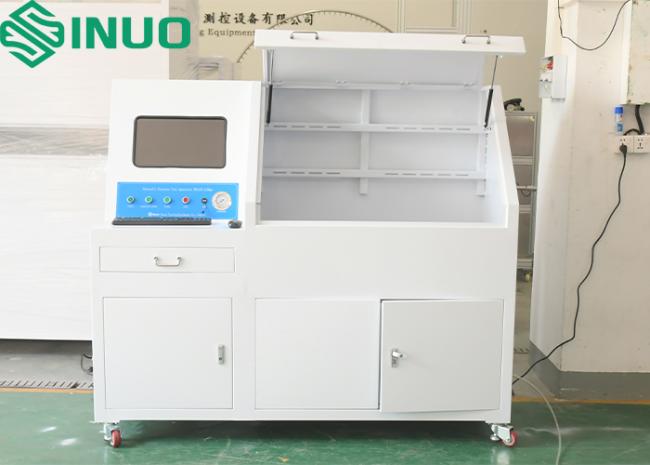

IEC 60335-2-41 Clause 22.101 Hydraulic Pressure Test Apparatus 0.1-2.5MPa
This hydraulic pressure test apparatus meets the requirements of multiple IEC standards including IEC 60335-2-3 clause 22.7, IEC 60335-2-15:22.7, IEC 60335-2-30:22.7, IEC 60335-2-41 clause 22.101, and others.
Designed for testing pressure-bearing products such as valves, water heaters, and treated fabrics, this apparatus performs water pressure resistance tests, static pressure evaluations, blasting performance tests, and water sealing performance assessments.
System Features
- Touch-screen computer control interface
- Data printing and pressure curve display capabilities
- Configurable test parameters including pressure, duration, and pressurization rate
- Pneumatic water pressure booster pump with stable performance pressure control
- User-friendly operation design
Technical Specifications
| No. | Contents | Parameters |
|---|---|---|
| 1 | Power supply | Two-phase: 220 V (phase-to-phase), 60 Hz |
| 3 | Operation interface | Touch type computer |
| 4 | Pressurized mode | Air pressure |
| 5 | Test pressure | 0.1-2.5MPa |
| 6 | Pressurization rate | 0.05~0.13MPa/s can be preset |
| 7 | Hydraulic pressure control accuracy | 0.1Mpa |
| 8 | Water temperature | RT+5℃~60℃ controllable (accuracy ±1℃) |
| 9 | Constant temperature water tank volume | 30L |
| 10 | Pressure apply or hold time | 0-999999s can be set |
| 11 | Use environment | Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80)%RH; Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation |
