IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester
IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester
Product Information:
This IPX1 / IPX2 Water Dripping Test Apparatus is designed and manufactured in accordance with IEC 60529, providing reliable verification of enclosure protection against vertically dripping water.
The equipment is widely used for waterproof performance evaluation of electrical and electronic devices, luminaires, household appliances, control cabinets, and automotive components.
By simulating controlled vertical dripping and inclined dripping conditions, the system enables manufacturers and laboratories to confirm whether products meet the required ingress protection levels under water drop exposure.
Key Features:
Compliance with IEC 60529
Fully supports IPX1 and IPX2 waterproof test requirements, including vertical dripping and 15° inclined dripping conditions.
Large Test Volume
Test chamber with an internal size of 1000 × 1000 × 1000 mm, suitable for a wide range of product dimensions.
Uniform Dripping System
Precision drip tray with Ø0.4 mm water holes and 20 mm spacing, ensuring even and consistent water distribution.
Adjustable Rotating Turntable
Equipped with a 600 mm diameter turntable, speed adjustable from 1 to 5 rpm, supporting stable sample exposure during testing.
Inclination Capability for IPX2
Turntable can be tilted up to 15 degrees to accurately simulate IPX2 dripping conditions.
Durable Stainless Steel Construction
All water-contact components are made of SUS304 stainless steel, offering excellent corrosion resistance and long service life.

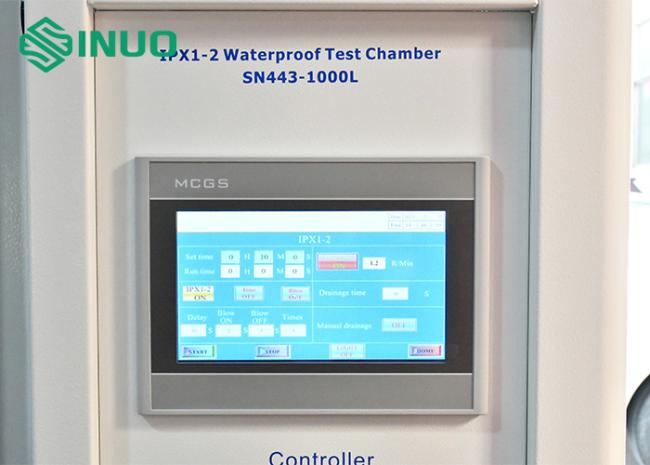

Intuitive Control System
LCD touch controller allows easy setting of test duration, rotation speed, and operating parameters.
Water Protection & Safety Design
Integrated filtration system prevents nozzle blockage; equipped with leakage protection, overload protection, and water shortage alarm.
Technical Parameters:
| Item | Specification |
|---|---|
| Model | SN443-1000L |
| Internal Chamber Size | 1000 × 1000 × 1000 mm |
| External Dimensions | Approx. 1500 × 1260 × 2000 mm |
| Turntable Diameter | 600 mm |
| Max Sample Load | Approx. 20 kg |
| Turntable Speed | 1–5 rpm, adjustable |
| Drip Hole Diameter | Ø0.4 mm |
| Hole Spacing | 20 mm |
| Dripping Area | 800 × 800 mm |
| Dripping Height | 200 mm |
| Control Method | LCD touch screen |
| Test Time Range | 1–999,999 minutes |
| Power Supply | AC 220V, 50Hz, single phase |
| Power Consumption | Approx. 3 kW |
| Protection Functions | Leakage, short circuit, water shortage, over-temperature |
| Operating Environment | Temperature: 10–35 °C / Humidity: ≤85% RH |
| Specifications can be customized according to customer requirements. | |
Applications:
Waterproof performance testing of electronic enclosures
Household appliance ingress protection evaluation
Lighting and luminaire waterproof testing
Automotive and motorcycle component inspection
R&D laboratories and quality control departments
