IEC 60529 IP2X 12.5mm Test Sphere Probe Built-In Force 0~50N for Enclosure Protection Test

Product Description:

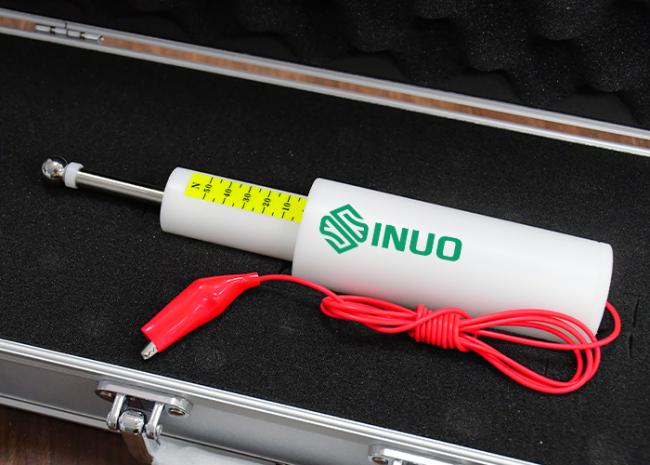

The SN2210-6T Test Probe B with Force is a precision test finger manufactured in strict accordance with IEC 61032 Figure 2 requirements.
It is widely used to verify the degree of protection of enclosures against access to hazardous parts and ingress of solid foreign objects with a diameter of 12.5 mm or greater, fully complying with IP2X protection testing.

This test probe is required by multiple international standards, including IEC 60335-1 (Clauses 8.1.1, 8.2, 22.1, 29.1, 29.2), IEC 60529, and IEC 61851-1 (Clauses 8 and 12.4), making it an essential testing tool for household appliances, electrical equipment, EV charging equipment, and enclosure safety evaluations.

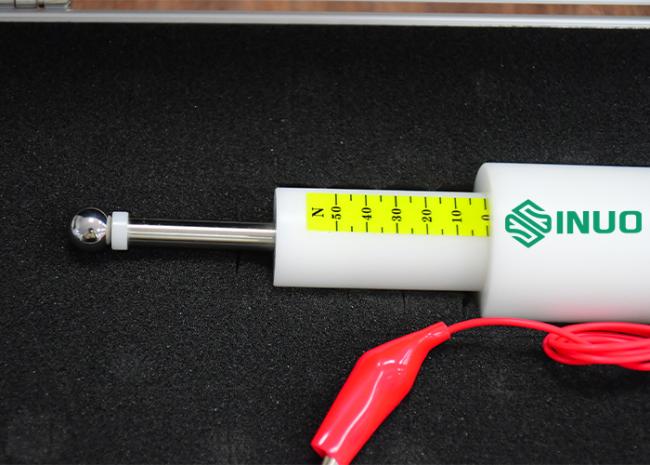

The probe is equipped with a Φ12.5 mm steel ball and an integrated force application mechanism, allowing test forces from 0 to 50 N with a 5 N resolution, ensuring accurate and repeatable test results.
An M6 threaded hole at the end of the handle allows connection to a push and pull dynamometer, enabling customized force application according to different test requirements.

The “T” model designation indicates that the probe is supplied with force, suitable for laboratories and manufacturers requiring controlled force testing during enclosure protection and accessibility evaluations.

Key Features:

Manufactured according to IEC 61032 Figure 2 – Test Probe B

Steel ball diameter: Φ12.5 mm (+0.2 / 0 mm)

Integrated force application: 0–50 N, 5 N resolution

Designed for IP2X enclosure protection tests

M6 threaded hole for connection with push/pull force gauge

Suitable for appliance, electrical equipment, and EV charging equipment testing

High precision, durable construction for laboratory and production use

Applications:

Enclosure protection and accessibility testing

IP2X compliance verification

Household appliance safety testing

Electrical and electronic equipment evaluation

EV charging equipment inspection
