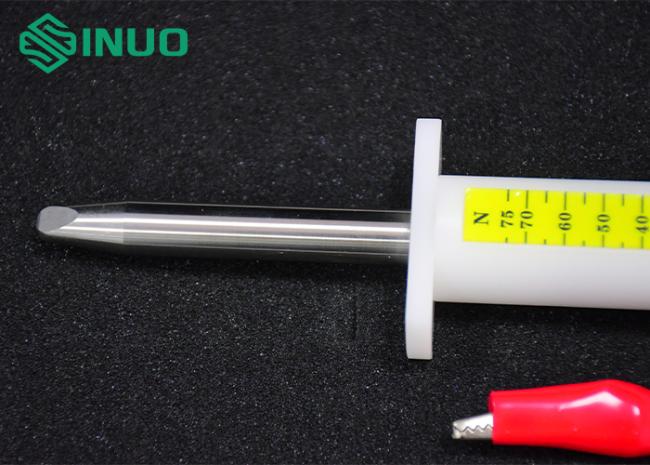

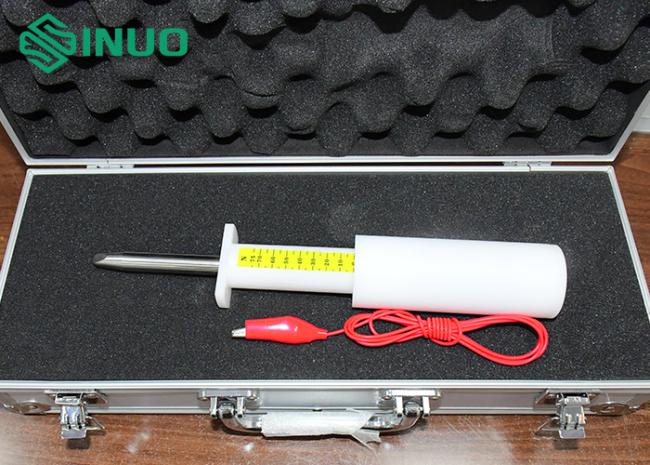

IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
Product Overview:
The IEC 61032 Test Probe 11 equipped with a 75 N dynamometer is a specialized safety evaluation tool engineered for precise verification of protective barriers in electrical and electronic devices. Designed in strict accordance with the IEC 61032 Figure 7 standard, this test probe helps ensure that enclosures and openings in equipment prevent accidental contact with hazardous live parts during normal operation and handling.
This test probe is built to simulate a human finger and applies controlled forces to examine openings and barriers, helping to meet safety requirements found in IEC 61032 as well as related global standards like IEC 60884-1, IEC 60669-1, and IEC 60335-1. It is ideal for testing sockets, appliance housings, or other electrical products to confirm effective protection against unintended finger access.
Technical Parameters:
| Parameters /Model | SN2210-7T |
| Name | Test Probe 11 with Dynamometer |
| Probe Tip Length (mm) | 19.95-20.00 |
| Probe Length with Tip (mm) | 80±0.2 |
| Probe Tip Cylindrical Radius (mm) | R2±0.05 |
| Probe Tip Spherical Radius (mm) | R4±0.05 |
| Probe Tip Cylindrical Angle (°) | 37o 0 -10’ |
| Probe Tip Spherical Angle (°) | 14 o 0 -10’ |
| Probe Diameter (mm) | Ф12 0 -0.05 |
| Guard Diameter (mm) | Ф50 |
| Guard Thickness (mm) | 5±0.5 |
| Built-in dynamometer | With force of 0-75N, resolution of 5N |
Key Functions & Features:
Integrated 75 N Force Measurement: Includes a built-in dynamometer with 5 N resolution that measures applied force during testing.
Anti-Shock Capable: Designed with a banana plug interface, allowing use in anti-electric shock verification where applicable.
Robust Construction: Precision-manufactured probe geometry ensures reliable and repeatable testing results.
