IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester
IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester
Product information:
Applicable Standards: IEC 61386-1:2017 Conduit systems for cable management – Part 1: General requirements> Clause 10.2
Specimens & Scope: Suitable for metal, non-metallic and composite conduits used to protect and manage insulated wires and/or cables for electrical or communication systems up to AC 1000 V and/or DC 1500 V.
Test Purpose: To evaluate whether the mechanical performance of conduits after compression meets the standard requirements.
Test Principle:

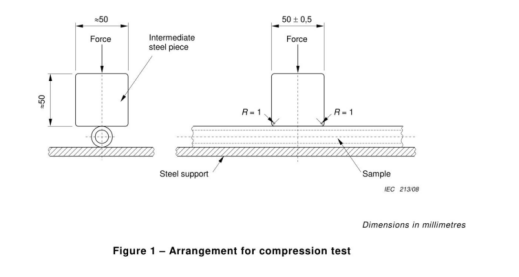

A PLC control system drives the motor to apply force via a sensor. The sensor is connected to a steel block of (50 ± 0.5) × 50 mm.
The specified force is applied to the specimen within (30 ± 3) s and maintained for (60 ± 2) s. The outer diameter of the specimen is measured during loading, and the deformation shall not exceed 25% of the original outer diameter.
After unloading, the device automatically returns. After (60 ± 2) s, the outer diameter is measured again, and the deformation shall not exceed 10% of the original outer diameter.
Technical parameters:
|
No. |
Item |
parameters |
|
1 |
Power supply |
AC 220 V ±10%, 50–60 Hz |
|
2 |
Test stations |
Single station |
|
3 |
Control mode |
PLC intelligent control, touch screen operation |
|
4 |
Specimen size |
Length 200 ± 5 mm, placed on base plate |
|
5 |
Drive mode |
Drive mode |
|
6 |
Force range |
10–4894 N, Resolution 0.1 N, Accuracy class 2.5, compliant with the force values specified in Table 4 of the standard.
|
|
7 |
Stroke |
0–600 mm |
|
8 |
Test speed |
10–250 mm/min, adjustable |
|
9 |
Compression block |
(50 ± 0.5) × 50 × 50 mm (L × W × H), bottom edges chamfered R1 |
|
10 |
Base plate |
Steel plate ≥ 10 mm, size 500 × 500 mm |
|
11 |
Constant force time |
0–999.9 s, presettable |
|
12 |
Test procedure |
(30 ± 3) s loading → (60 ± 2) s constant force → release |
|
13 |
Conduit diameter measurement |
Manual |
|
14 |
Dimensions |
approx. 1000 × 600 × 1350 mm (W × H × D) |
|
15 |
Weight |
150 kg |
|
16 |
Operating Environment |
temperature: 23 ± 2 °C |
